VFC-030HB-020C | 3 IN 2-WAY BTFLY VLV; HP PNEU; DUAL ACTION 2-POSITION 175 PSI CLOSE-OFF | Johnson Controls
Overview
Details for VFC-030HB-020C

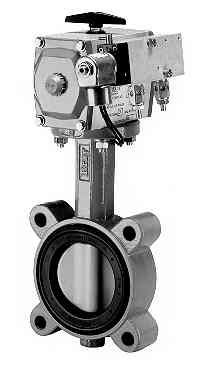

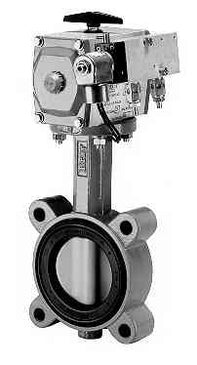

3 IN 2-WAY BTFLY VLV; HP PNEU; DUAL ACTION 2-POSITION 175 PSI CLOSE-OFF
Description
VF Series Two-Way, Industrial-Grade, Non-Spring-Return, V-909x Series High-Pressure Pneumatically Actuated, Standard-Pressure, Standard-Temperature Butterfly Valves are specifically designed for a wide range of HVAC applications, including two-position and modulating control of hot, chilled, or condenser water, and 50/50 glycol solutions. All valves are factory tested for bubble-tight shutoff at 100% of the fully rated pressure. These valves are also bidirectional, allowing positive shutoff with the flow in either direction.
Features
- low seating/unseating torques
- bubble-tight shutoff
- broad range of pre-assembled actuators
- compatible with all types of American National Standards Institute (ANSI) 125/150 slip-on and weld-neck flanges
- high-integrity components
- air supply pressure of 70 psig to 90 psig (80 psig nominal; 140 psig maximum)
- valve assemblies for on/off applications come standard with a 24 VAC or 120 VAC solenoid valve with speed controls
- valve assemblies for proportional applications come standard with a valve actuator positioner
Specifications
Item Number | VFC-030HB-020C |
Brand | Johnson Controls |
