PAN-PWRSP | PANEL POWER SUPPLY 96VA; PANEL POWER SUPPLY 96VA 120/24VAC POWER SWITCH 120VAC OUTLETS | Johnson Controls
Documents and manuals
Johnson Controls PAN-PWRSP Documents
Overview
Details for PAN-PWRSP
PANEL POWER SUPPLY 96VA; PANEL POWER SUPPLY 96VA 120/24VAC POWER SWITCH 120VAC OUTLETS
Description

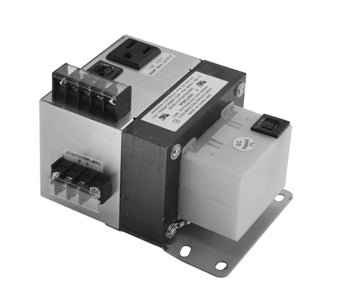

The PAN-PWRSP Power Supply family is composed of 96 VA Class 2 power supplies incorporating a 5 A circuit breaker, a 96 VA 120/24 VAC transformer, and two 120 V convenience outlets.The high voltage terminals of each power supply are covered for compliance with NFPA 70E requirements.
The two 120 V convenience outlets provided with each power supply is always energized and usable for power connections such as a laptop computer (5 A maximum). The 5 A circuit breaker provides circuit protection for the primary side of the power supply and protects the two-position terminal block positions that allow a direct connection to a second transformer for applications requiring more than 96 VA.
The 4 A circuit breaker is manually resettable and protects the secondary winding. The secondary lead wires are 20 in. long.
The PAN-PWRSP-U model has been tested and listed by Underwriters Laboratories Inc.® (UL) for use in a Metasys® system UL/cUL 864 UUKL 10th Edition Smoke Control System. (For details on its application, refer to the Metasys® System UL 864 10th Edition UUKL/ORD-C100-13 UUKLC Smoke Control System Technical Bulletin [LIT-12012487].)
Features
- power supply with resettable circuit breaker and transformer provides high-voltage and low-voltage protection
- power supply pre-built, pre-wired, and pretested in an ISO-9002 manufacturing facility provides products of consistently high quality
- covers over high voltage terminal blocks provide protection
- Power Supply
- 120 VAC Input Voltage - 20-30 VAC Output Voltage
- 5A Circuit Breaker For 120 VAC Side & 4A Circuit Breaker For 24 VAC Side
- UL508 Listed
Specifications
Item Number | PAN-PWRSP |
Brand | Johnson Controls |
Category | Transformers & Power Supplies |
Section | Power Supplies |
SubCategory | Power Supplies |
