M9220-HGA-3 | DAMPER ACTUATOR 20 NM SR; 20 NM SR DPR ACT 0 TO 20 VDC ADJ START & SPAN 24 VAC 50/60 HZ 24 VDC | Johnson Controls

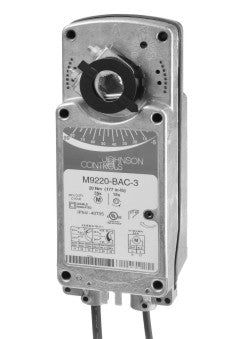

Johnson Controls | M9220-HGA-3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M9220-HGA-3

Documents and manuals

Johnson Controls M9220-HGA-3 Documents

Overview

Details for M9220-HGA-3

DAMPER ACTUATOR 20 NM SR; 20 NM SR DPR ACT 0 TO 20 VDC ADJ START & SPAN 24 VAC 50/60 HZ 24 VDC

These bidirectional actuators do not require a damper linkage, and are easily installed on dampers with 1/2 to 3/4 in. or 12 to 19 mm round shafts, or 3/8 and 1/2 in. or 10, 12, and 14 mm square shafts using the standard shaft clamp included with the actuator. An optional M9220-600 Jackshaft Coupler Kit is available for 3/4 to 1-1/16 in. or 19 to 27 mm round shafts, or 5/8 and 3/4 in. or 16, 18, and 19 mm square shafts
  • Damper Actuator
  • 24 VAC/VDC
  • Proportional [0..10 VDC] w/Adjustable Start & Span
  • Spring Return
  • 177 in-lb Torque
  • 48 in. Appliance Cable
  • 150 sec Runtime
  • NEMA 2
  • 0101 - 0200 IN-LB

Specifications

Item Number M9220-HGA-3
Brand Johnson Controls
Actuator Type Damper
Category Dampers & Actuators
Control Input Modulating
End Switch No
Housing NEMA 2
Section Electric Actuators
Section Valves & Actuators
Spring Return Spring Return
SubCategory Electric Actuators
Torque 177 in-lb
Voltage 24V
