M9104-GGA-3S | DAMPER ACTUATOR 4 NM NSR; 4 NM DPR ACT 0 TO 10 VDC 24 VAC 50/60 HZ TERMINAL SCREWS | Johnson Controls

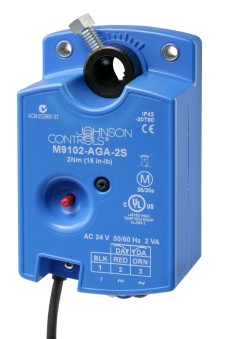

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M9104-GGA-3S
Documents and manuals
Johnson Controls M9104-GGA-3S Documents
Overview
Details for M9104-GGA-3S
DAMPER ACTUATOR 4 NM NSR; 4 NM DPR ACT 0 TO 10 VDC 24 VAC 50/60 HZ TERMINAL SCREWS
The M9102 and M9104 Series Actuators are direct‑mount, non‑spring‑return electric actuators that operate on AC 24 V power. These synchronous motor‑driven actuators provide floating control (AGA), floating control with automatic shutoff (IGA), and proportional control with selectable 0‑10 or 2‑10 VDC (GGA). The ‑2S models are equipped with plenum cables, and the ‑3S models are equipped with terminal blocks. All models are compact in size and are easily installed on VAV boxes, Variable Volume and Temperature (VVT) two‑position zone applications, or small‑ to medium‑sized dampers with a round shaft up to 1/2 in. (13 mm) in diameter or a 3/8 in. (10 mm) square shaft.- Damper Actuator
- 24 VAC
- Proportional [0(2)..10 VDC]
- Non-Spring Return
- 35 in-lb Torque
- M3 Screw Terminals
- 60 sec Runtime
- NEMA 1
- 0026 - 0050 IN-LB
Specifications
Item Number | M9104-GGA-3S |
Brand | Johnson Controls |
Actuator Type | Damper |
Category | Dampers & Actuators |
Control Input | Modulating |
End Switch | No |
Housing | NEMA 1 |
Section | Electric Actuators |
Section | Valves & Actuators |
Spring Return | Non-Spring Return |
SubCategory | Electric Actuators |
Torque | 35 in-lb |
Voltage | 24V |
