Details for D-9502-5

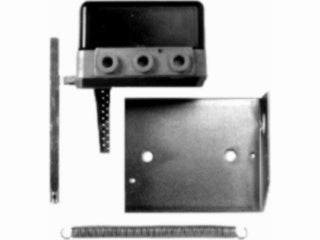

POSITIONER KIT FOR D-3244; & D-3246
Description
The D-9502 Pneumatic Damper Actuator Positioners are precision relay devices used to adjust and maintain damper actuators in exact positions on those applications requiring precise or otherwise special damper positioning.
Features
- provides dynamic stabilization and/or sequential control
- includes mounting bracket for direct attachment to actuator body
Applications
The pneumatic damper actuator pilot positioner provides dynamic stabilization and/or sequential control of pneumatic damper actuators. It is available factory installed on D-4070, D-4073, D-3153, and DS-3153 Damper Actuators. On D-3153 Series Actuators, a special positioner mounting kit (D-9502-9) is available for changing basic D-9502 positioner control to two-stage operation.
Depending on the type of actuator used, up to three additional actuators may be controlled by a single positioner/actuator assembly; for example, multiple actuators modulating large or coupled dampers.
- Pilot Positioner for F/D-251 & D-3244+D535/46
Specifications
| Item Number | D-9502-5 |
| Brand | Johnson Controls |
| Category | Dampers & Actuators |
| Section | Accessories - Dampers |
| Section | Valves & Actuators |
| SubCategory | Accessories - Dampers |
