C-7355-9 | DIGITAL CLOCK; 1 SPDT | Johnson Controls

DIGITAL CLOCK; 1 SPDT

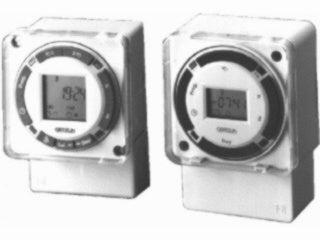

The C-7355 Digital Series 7-Day Time Clocks provide an economical control solution for automatic On/Off switching of equipment. Digital time clocks are available in the following types: C-7355-9 (one channel) and C-7355-10 (two channels). The C-7355-9 uses heavy duty single-pole/doublethrow (SPDT) contacts (rated 16 amps at 240 VAC resistive) to switch a high current load. Up to 10 On and 10 Off events can be programmed per day using the C-7355-9. The C-7355-10 uses two heavy duty SPDT contacts (rated 16 amps at 240 VAC resistive) to switch two high current loads. The two SPDT relays can be programmed to switch one load or two loads simultaneously (double-pole/double-throw DPDT) with each scheduled event. Up to 42 On/Off events can be programmed per day using the C-7355-10.
