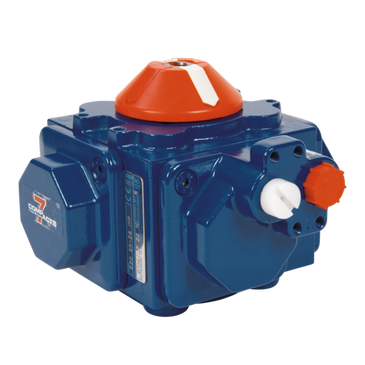

PCS25 | PCS25 Model Actuator, Air-to-Spring, Rack and Pinion, fits 2-1/2" - 6" TBH & CVH Series / 2-1/2" - 3" TN & HCLA-90 Series / 2" - 3" Butterfly Valves w/ Man. Override | Hayward | Hayward

Brand: HaywardSKU: PCS25

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PCS25

Jump to: Overview & Specifications Reviews

Overview Details for PCS25

PCS25 Model Actuator, Air-to-Spring, Rack and Pinion, fits 2-1/2" - 6" TBH & CVH Series / 2-1/2" - 3" TN & HCLA-90 Series / 2" - 3" Butterfly Valves w/ Man. Override | Hayward

• Double Acting Air-to-Open and Close or
• Spring Return Fail-Safe Operation
• For All Sizes of Ball and Butterfly Valves
• Four-Piston Rack and Pinion Design
• Manual Override
• Compact, Lightweight
• Position Indicator
• Namur-Style Solenoid Mounting (Inlet/Outlet)
• Adjustable Travel Stops
• ISO5211 Mounting Base

Specifications

Item Number	PCS25
Brand	Hayward
Action Type	Single Acting Fail-Safe
Actuator Type	Pneumatic
Air Consumption	20 cu. In.
Air Transfer	Internal
Airport Connections	1/4 in NPT
Category	Actuation & Controls
Chassis	PCS
Class	Pneumatic Actuators & Accessories
Housing Material	Epoxy-Coated Aluminum
Iso Flange	F07
Max Air Pressure	120 PSI
Min Air Pressure	80 PSI
Operation Type	Spring Return Fail-Safe
Output Shaft	Plated Steel
Series	PC Series Pneumatic Actuators
Sub Category	Pneumatic Actuators & Accessories
Subtype	Pneumatic Actuators
Torque Rating	217 in/lbs
Type	Hayward Actuation
