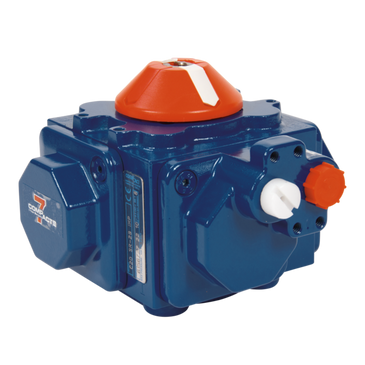

PCD35 | PCD35 Model Actuator, Air-to-Air, Rack and Pinion Design fits 8" Butterfly Valves, Heavy Duty, Man. Override | Hayward

Brand: HaywardSKU: PCD35

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PCD35

Jump to: Overview & Specifications Reviews

Overview Details for PCD35

PCD35 Model Actuator, Air-to-Air, Rack and Pinion Design fits 8" Butterfly Valves, Heavy Duty, Man. Override

• Double Acting Air-to-Open and Close or
• Spring Return Fail-Safe Operation
• For All Sizes of Ball and Butterfly Valves
• Four-Piston Rack and Pinion Design
• Manual Override
• Compact, Lightweight
• Position Indicator
• Namur-Style Solenoid Mounting (Inlet/Outlet)
• Adjustable Travel Stops
• ISO5211 Mounting Base

Specifications

Item Number	PCD35
Brand	Hayward
Action Type	Double Acting
Actuator Type	Pneumatic
Air Consumption	49 cu. In.
Air Transfer	Internal
Airport Connections	1/4 in NPT
Category	Actuation & Controls
Chassis	PCD
Class	Pneumatic Actuators & Accessories
Housing Material	Epoxy-Coated Aluminum
Iso Flange	F10
Max Air Pressure	120 PSI
Min Air Pressure	80 PSI
Operation Type	Double Acting
Output Shaft	Plated Steel
Series	PC Series Pneumatic Actuators
Sub Category	Pneumatic Actuators & Accessories
Subtype	Pneumatic Actuators
Torque Rating	1848 in/lbs
Type	Hayward Actuation
