LHB1BYV4S2 | LHB-1 for 4" BYV w/2 limit switches | Hayward

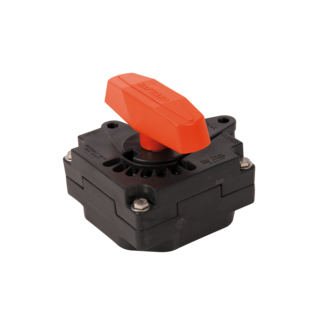

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LHB1BYV4S2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward LHB1BYV4S2 Documents

Datasheet More Info

Overview

Details for LHB1BYV4S2

LHB-1 for 4" BYV w/2 limit switches

Manual Limit Switches for ball and butterfly valves up to 8". The LHB Series meets ISO5211 standards, rated NEMA 4X and has integral lockout. SPDT 10 amp @ 120VAC limit switches are included standard.

• Remote Monitoring of Critical Services
• Retrofits to Existing Valves
• Robust GFPP Body, Cover and Plate
• 304 Stainless Steel Stem and FPM Seals
• Fits All Hayward® Ball Valves up to 6" and Butterfly Valves up to 8"
• Available with "Dead-Man" Spring Return Handle or Handlever (LHB-SR)
• Two Adjustable SPDT 10 Amp at 120 VAC Switches (Open/Close Position)
• 1/2" Conduit Port
• Terminal Blocks for Ease of Wiring
• Meets ISO5211, F05, F07 and F10 Patterns
• NEMA 4X
• Switches CSA Listed

Specifications

Item Number	LHB1BYV4S2
Brand	Hayward
Category	Thermoplastic Valves
Class	LHB Series Manual Limit Switch for TB & BYV Series
Limit Switch Action	Manual Limit Switch Non-Spring Return
Limit Switches	2 Limit Switches
Series	LHB Series Manual Limit Switches
Sub Category	Ball Valves
Subtype	Actuated Accessories
Type	Hayward Actuation
Valve Series	BYV Series Butterfly Valves
Valve Size	4"
