HRSN3BK1 | HRS 1770''lb 120vac On/Off 4x/IP67 2Aux HW | Hayward

Brand: HaywardSKU: HRSN3BK1

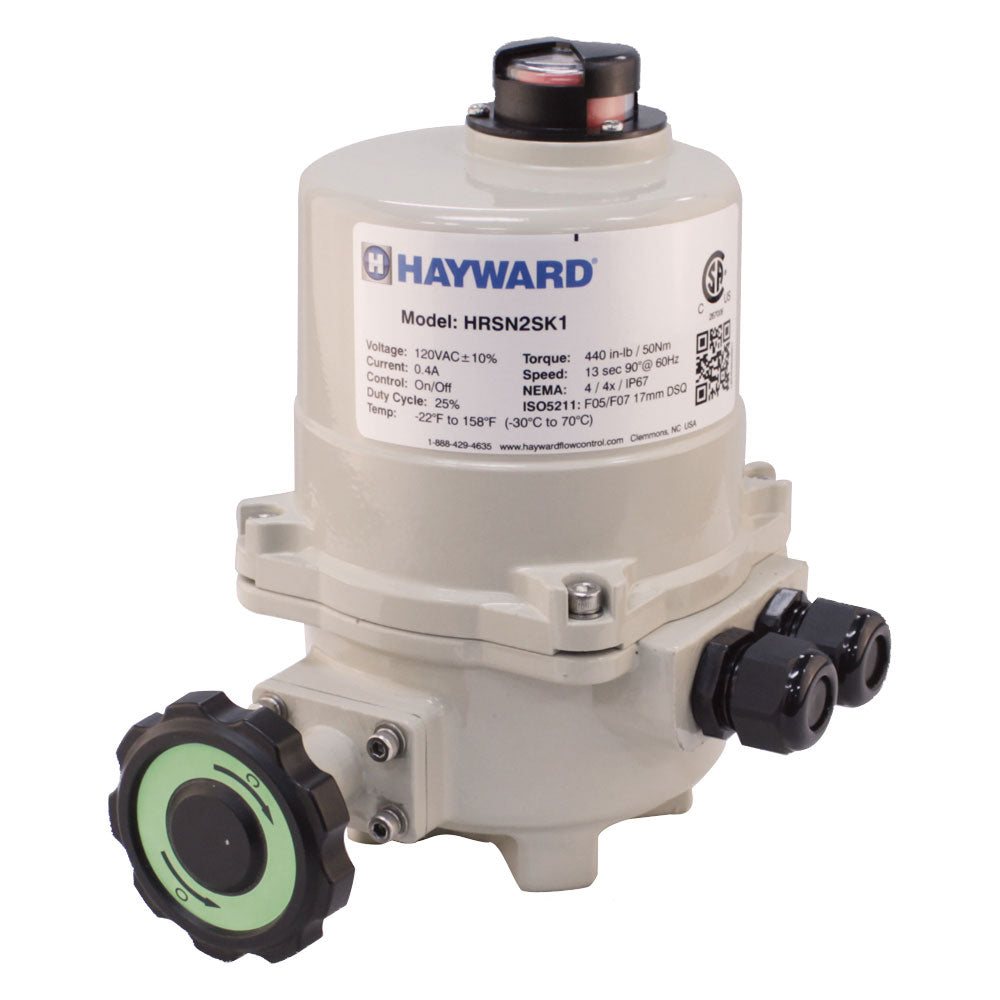

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HRSN3BK1

Jump to: Overview & Specifications Reviews

Overview Details for HRSN3BK1

HRS 1770''lb 120vac On/Off 4x/IP67 2Aux HW

Description

HRSN3BK1 is a quarter-turn electric actuator from Hayward’s HRS series. This device can drive dampers, ball and butterfly valves, as well as other industrial applications with up to 1770 lbf-in (pound-force inch) torque and voltages from 12 to 230 VAC.

Key Features

Comprehensive visual position indicator
Double square drive inserts with ISO5211 compliant mounting
Two EMT entry ports
Aluminum alloy housing for longer service life
Two form-A auxiliary switches
NEMA 4 enclosure for protection against corrosion
Motors with thermal protection
Manual override with clutch-free handwheel standard
High-efficiency AC& DC drive motors
Self-locking epicyclic transmission
Electronic failsafe

Options

Three-position control
Interchangeable drive inserts and ISO5211 mount
Extended duty motors
Variety of positioners

Specifications

Item Number	HRSN3BK1
Brand	Hayward
AC Voltage	120 V
Altitude Limit	9850 ft
Ambient Operating Range	-22°F to +158°F (-30°C to +70°C)
Category	Actuation
Category	N/A
Class	N/A
Control	On/Off
Current Draw (LRA)	1.47
Current Draw (Run)	0.93
Current Draw (Start)	1.16
Duty Cycle	25 %
Electrical Entry (2)	3/4" EMT or Nylon Gland
Humidity Range	0-95% RH
Motor Class	F
Motor Power	40 W
Motor Protection Temp	135 °C
Motor	Split-Phase Cap TENV
per hour	1200
Speed (90°) 50Hz	39 second
Speed (90°) 60Hz	33 second
Sub Category	N/A
SubCategory	Electric Actuators
SubCategory	HRSN3 Series
Torque Output	1770 lbf-in
