HRSN2SK1 | HRS 443''lb 120vac On/Off 4x/IP67 2Aux w/ HW | Hayward
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HRSN2SK1
Overview
Details for HRSN2SK1

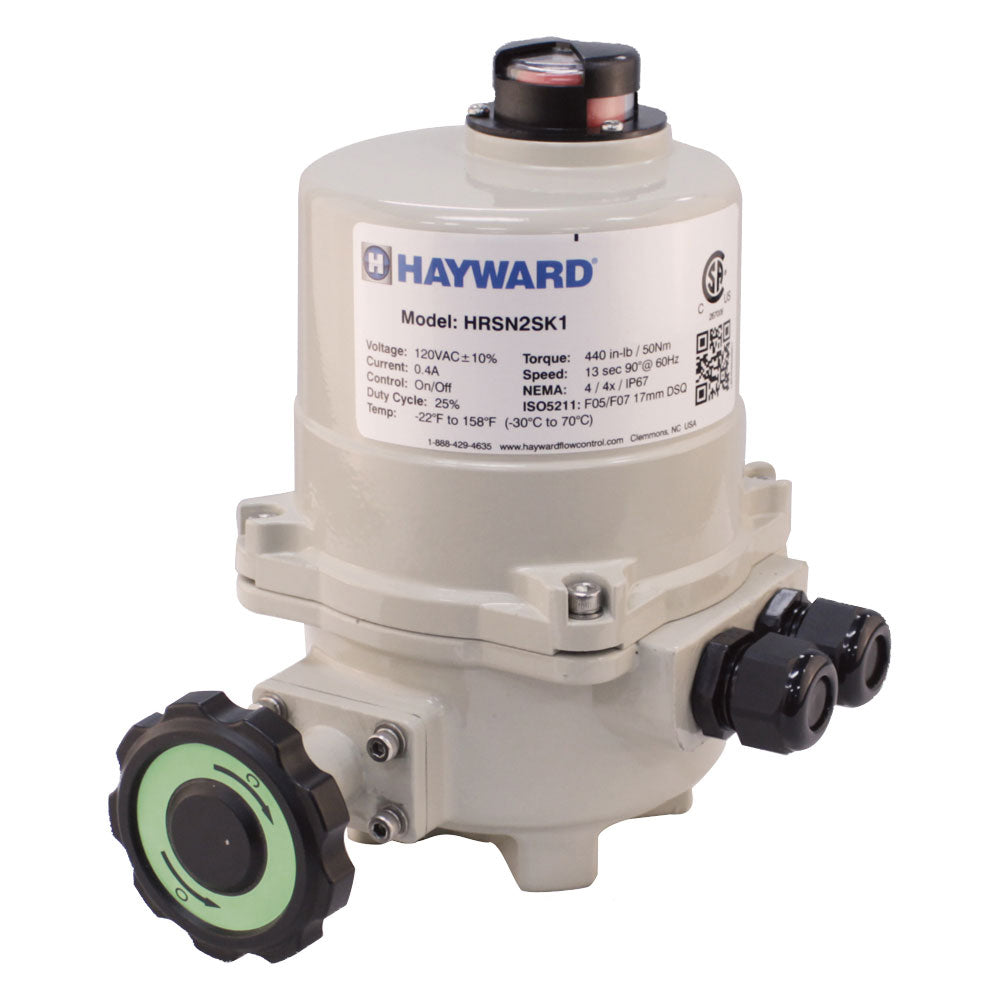

HRS 443''lb 120vac On/Off 4x/IP67 2Aux w/ HW
Description
The HRSN2S series is an electric actuator from Hayward that provides flow control in industrial and commercial applications.
The HRSN2SK1 model offers an on/off and proportional control, ambient operating range from -22 to 158 degrees Fahrenheit (-30 to 70 Celcius) and over 9850ft (3000m) altitude limit.
Features & Benefits
Electric actuators from the HRSN2S series offer:
- Easy installation (ISO5211 compliance and visual position indicator)
- Handwheel (optional) and shaft standard for manual override
- Resistance to harsh environments and pollutants (NEMA 4X and IP67 compliance)
- Two EMT entry ports with sealed cable glands and two volt-free auxiliary switches
- Optional battery & super cap, backup, local control station, and IP68 submersion
Refer to the instruction manual to learn about the product’s technical information.
Specifications
Item Number | HRSN2SK1 |
Brand | Hayward |
AC Voltage | 120 V |
Altitude Limit | 9850 ft |
Ambient Operating Range | -22°F to +158°F (-30°C to +70°C) |
Category | Actuation |
Category | N/A |
Class | N/A |
Control | On/Off |
Current Draw (LRA) | 0.48 |
Current Draw (Run) | 0.36 |
Current Draw (Start) | 0.39 |
Duty Cycle | 25 % |
Electrical Entry (2) | 1/2” EMT or Nylon gland |
Humidity Range | 0-95% RH |
Manual Override | Hand Wheel |
Motor Class | F |
Motor Power | 10 W |
Motor Protection Temp | 135 °C |
Motor | Split-Phase Cap TENV |
per hour | 1200 |
Speed (90°) 50Hz | 15 second |
Speed (90°) 60Hz | 12.5 second |
Sub Category | N/A |
SubCategory | Electric Actuators |
SubCategory | HRSN2 Series |
Torque Output | 440 lbf-in |
