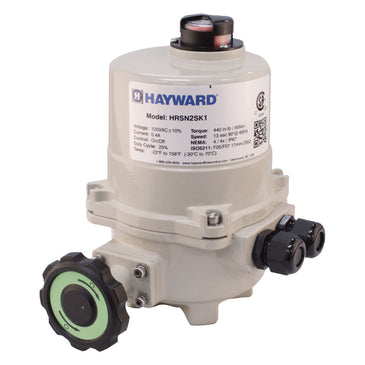

HRSN2AK1 | HRS 310''lb 120vac On/Off 4x/IP67 2Aux No HW | Hayward

Brand: HaywardSKU: HRSN2AK1

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for HRSN2AK1

HRS 310''lb 120vac On/Off 4x/IP67 2Aux No HW

Item Number	HRSN2AK1
Brand	Hayward
AC Voltage	120 V
Altitude Limit	9850 ft
Ambient Operating Range	-22°F to +158°F (-30°C to +70°C)
Category	Actuation
Category	N/A
Class	N/A
Control	On/Off
Current Draw (LRA)	0.48
Current Draw (Run)	0.36
Current Draw (Start)	0.39
DC Voltage Selection	0
Duty Cycle	25 %
Electrical Entry (2)	1/2” EMT or Nylon gland
Humidity Range	0-95% RH
Manual Override	Bottom 8mm Hex Shaft
Maximum Operating Temperature	158 °F
Minimum Operating Temperature	-22 °F
Motor Class	F
Motor Power	10 W
Motor Protection Temp	135 °C
Motor	Split-Phase Cap TENV
per hour	1200
Speed (90°) 50Hz	11 second
Speed (90°) 60Hz	9.2 second
Sub Category	N/A
SubCategory	Electric Actuators
SubCategory	HRSN2 Series
Torque Output	310 lbf-in
Torque Output	SI
