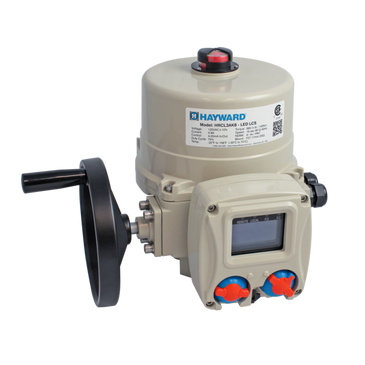

HRCL3BT1D1DANTM | HRCL3B 1770 in/lbs 480 On/Off NEMA/4/4X/IP67 LCS/CL/2AX | Hayward

HRCL3B 1770 in/lbs 480 On/Off NEMA/4/4X/IP67 LCS/CL/2AX

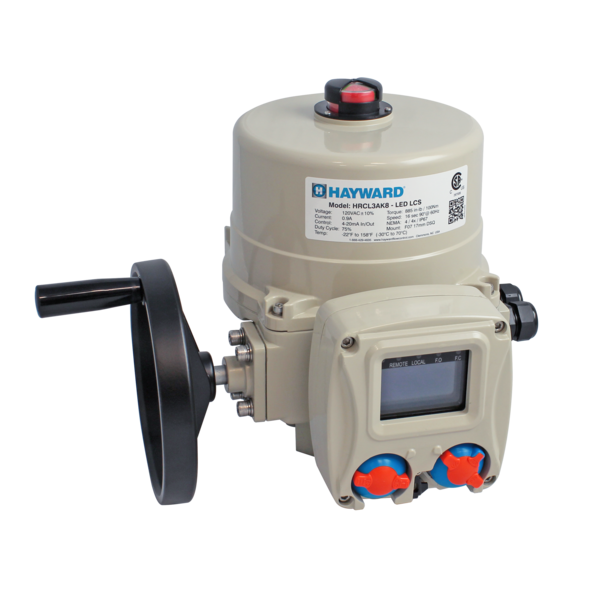

Hayward’s HRC Series electric actuators are designed and produced to provide years of service in demanding industrial environments such as chemical processing, waste and water treatment, power generation, oil & gas, marine, mining, and building services. The HRC Series incorporates Local Control System (LCS) functionality which allows for operator control of the actuator at the actuator. The LCS systems range from basic knob-type control to full-featured LCD submersible solutions. These quarter-turn units drive dampers, ball valves, butterfly valves, or inlet guide vanes that require torque ranges from 300 in-lbs up to 177,000 in-lbs. The HRC Series housings are designed to meet NEMA 4X environmental demands, with ISO5211 compliant mounting that readily attaches to most valves in the industries served. The HRC2 Series is a compact multi-stage gear train with a lever-less manual override system built in. The HRC3+ Series features an epicyclic transmission system that provides highly efficient multiplication of motor power to produce uniquely compact torque ranges compared to other technologies. A clutch-free manual override system provides full-time override capabilities during powered or un-powered events, and the LCS allows for simple adaptation for overhead chain-wheel drive installations.
