HRCB5AT1H1HANTM | HRCB5A 30970 in/lbs 480 On/Off NEMA/4/4X/IP67 LCS/CB/2AX | Hayward
Documents and manuals
Hayward HRCB5AT1H1HANTM Documents
Overview
Details for HRCB5AT1H1HANTM

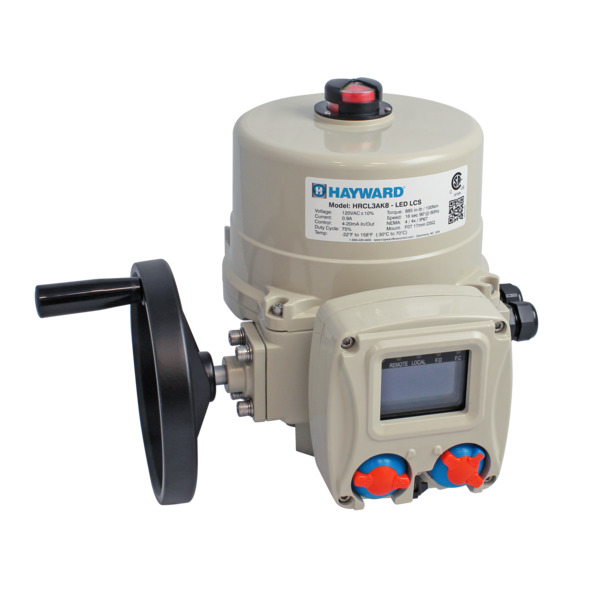

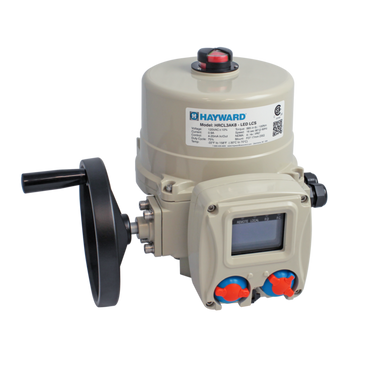

HRCB5A 30970 in/lbs 480 On/Off NEMA/4/4X/IP67 LCS/CB/2AX
Hayward’s HRC Series electric actuators are designed and produced to provide years of service in demanding industrial environments such as chemical processing, waste and water treatment, power generation, oil & gas, marine, mining, and building services. The HRC Series incorporates Local Control System (LCS) functionality which allows for operator control of the actuator at the actuator. The LCS systems range from basic knob-type control to full-featured LCD submersible solutions. These quarter-turn units drive dampers, ball valves, butterfly valves, or inlet guide vanes that require torque ranges from 300 in-lbs up to 177,000 in-lbs. The HRC Series housings are designed to meet NEMA 4X environmental demands, with ISO5211 compliant mounting that readily attaches to most valves in the industries served. The HRC2 Series is a compact multi-stage gear train with a lever-less manual override system built in. The HRC3+ Series features an epicyclic transmission system that provides highly efficient multiplication of motor power to produce uniquely compact torque ranges compared to other technologies. A clutch-free manual override system provides full-time override capabilities during powered or un-powered events, and the LCS allows for simple adaptation for overhead chain-wheel drive installations.
• Local Control Stations allow stand-alone or isolated operation from PLC systems
• CK Type has Knob/Key Type Switches
• CB Type has Knob/Knob Type Switches
• CL Type has LED Indicators
• CD Type has Full LCD Display
• 120VAC operation standard, with 24VAC/VDC, 230VAC options available
• Units equipped with two (2) volt-free Form A Auxiliary switches
• Anti-Condensate heater standard
• ISO5211 compliant mechanical mount w/ double-square female drive socket
• EMT port(s) for ease of field wiring
• NEMA 4/4x/IP67 Compliant
• Raised visual position indicator in high contrast red/green color
• Clutchless Hand Wheel override standard on most models
• Collapsible spinner handle option available
Specifications
Item Number | HRCB5AT1H1HANTM |
Brand | Hayward |
Actuator Type | Electric |
Category | Hayward Actuation |
Chassis Option | LCS-CB with (2) Aux Switches |
Chassis | HRCB5A |
Class | |
Control | On/Off |
Cycle Speed Sec 60hz Dc | 63 sec |
Duty Cycle | 0.25 |
Lra Current | 2.1 amps |
Motor Watts | 200W |
Power Type | 3 Phase |
Run Current | 0.9 amps |
Start Current | 1.2 amps |
Subtype | HRS Series On Off Proportional Electric Local Control Actuators |
Suby Category | HRS Series |
Torque Rating | 30970 in/lbs |
Voltage | 480 |
Wiring Diagram Filename | WD73TS-3PH |
