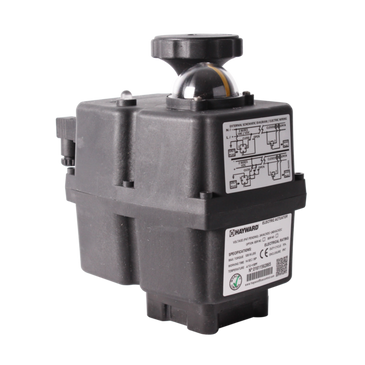

ECP Series Electric Actuator 530 IN*LB 115/230 VAC F07 X 14mm

The ECP features a GFPP (Glass Filled Polypropylene) housing that provides the actuator superior corrosion resistance and performance in environments and atmospheres where most metal actuators cannot. Compact actuator for all applications. Standard 24~265VAC/VDC, 2 auxiliary limit switches, heater, LED status, position indicator and manual override. GFPP thermoplastic housing. NEMA 4X (IP67). Proportional control and battery fail safe are factory installed options available at time of order.

• Ideal for Corrosive Atmosphere and Environments
• Corrosion-Resistant GFPP Housing
• LED Status Light
• Anti-Condensation Heater
• Manual Override
• Position Indicator
• 4 SPDT Micro Limit Switches
• Lightweight - Easy for Installation
• ISO 5211 Mounting Base
• Stainless Steel Fasteners 303 SS
• 100% Factory Tested
• CE Mark
• Thermal Overload Protection
• Auto Switching Power Supply

Specifications

Item Number	ECP5
Brand	Hayward
Actuator Type	Electric
Category	N/A
Chassis	ECP5
Class	N/A
Control	On/Off
Cycle Speed Sec 60hz Dc	14 sec
Cycle Time	14 s
Duty Cycle	.75
Duty Rating	75 %
Enclosure	NEMA 4 / 4X
Housing	GFPP (Glass Filled Polypropylene) per 314ASTM D4101 Cell Class 85580
Iso Flange	F07
Motor Watts	90W
Operatiing Temperature	4 to 160 ºF 16 to 71 ºC
Operation	1/4 Turn
Output Shaft	303 Stainless Steel per ASTM A314
Power Type	AC/DC
Protection	IP67 265
Series	ECP Series Glass Filled Polypropylene Electric Actuators
Sub Category	N/A
Subtype	Electric Actuators
Torque Output	530 in·lb 60 N·m
Torque Rating	530 in/lbs
Type	Hayward Actuation
Voltage	24~265VAC/VDC Auto Selecting
Voltage	Single Phase 24~265VAC/VDC
