Documents: EAU28

Datasheet

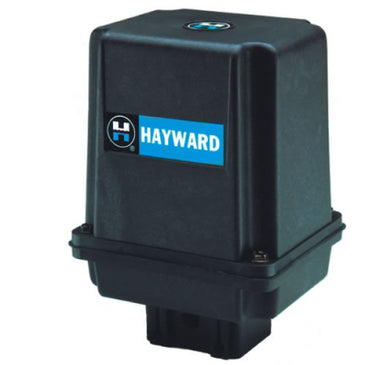

EAU28 | EAU28 Model Actuator fits 1/2" - 2" 3-Way TU Ball Valves, light duty | Hayward

Brand: HaywardSKU: EAU28

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EAU28

Suggested Alternatives

Jump to: Overview & Specifications Reviews

Overview Details for EAU28

EAU28 Model Actuator fits 1/2" - 2" 3-Way TU Ball Valves, light duty

The EAU Series electric actuator is a full featured actuator for use in applications with Hayward TB ball valves only.

• UL/CSA Listed Motor
• Thermoplastic NEMA 4 / 4X Enclosure
• 2.5 Second, 90° Cycle Time, 5.0 sec 180° Cycle Time
• Permanently Lubricated Gear Train
• Actuator Brake
• 90 or 180° Operation
• Unidirectional, Not Reversing
• Terminal Block Connections
• Standard 120 VAC
• End of Travel Dry Contact Limit Switch
• Thermal Overload Protection
• Lightweight, Compact and Inexpensive

Specifications

Item Number	EAU28
Brand	Hayward
Actuator Type	Electric
Category	N/A
Chassis	EAU28
Class	N/A
Control	0°-90°-180°
Housing Material	GFPP
Phase	Single Phase
Power Type	AC/DC
Series	EAU Series Electric Actuators
Sub Category	N/A
Subtype	Electric Actuators
Torque Rating	120 in/lbs
Type	Hayward Actuation
Voltage	115
