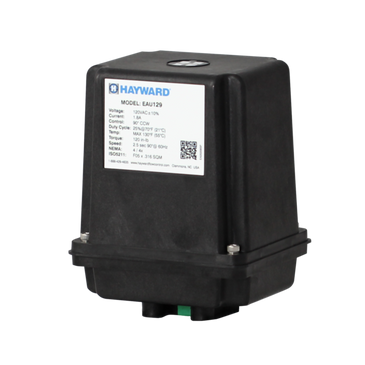

EAU129 | EAU129 Model Actuator fits 1/2" - 2" TBH & CVH Series Ball Valves, ISO5211 Mounting | Hayward

Brand: HaywardSKU: EAU129

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EAU129

Jump to: Overview & Specifications Reviews

Overview Details for EAU129

EAU129 Model Actuator fits 1/2" - 2" TBH & CVH Series Ball Valves, ISO5211 Mounting

The EAU1 Electric Actuator is a full-featured unit with an ISO5211 compliant F05 base.

• ISO5211 Compliant F05 Base
• UL/CSA Listed Motor
• Thermoplastic NEMA 4 / 4X Enclosure
• 2.5 Second, 90° Cycle Time, 5.0 sec 180° Cycle Time
• Permanently Lubricated Gear Train
• Actuator Brake
• 90 or 180° Operation
• Unidirectional, Not Reversing
• Terminal Block Connections
• Standard 120 VAC
• End of Travel Dry Contact Limit Switch
• Thermal Overload Protection
• Lightweight, Compact and Inexpensive

Specifications

Item Number	EAU129
Brand	Hayward
Actuator Type	Electric
Auxiliary Switch	10A 230vac (Resistive) SPDT x 1
Category	Actuation
Category	Hayward Actuation
Chassis	EAU1
Class
Conduit Size	1/2” EMT x 1 Port
Control	On/Off
Cycle Speed Sec 60hz Dc	2.5 sec
Cycle Time	2.5 s
Drive Cycle	90 º
Duty Cycle	.25
Duty Cycle	25 %
Enclosure	NEMA 4/4X
FLA/LRA	1.8 A
Housing	GFPP
Iso Flange	F05
Lra Current	1.8 amps
Mount	ISO5211 F05 x 0.316 Male Drive
Operating Temp	32°F to 130°F (0°C to 55°C)
Operation	Unidirectional - CCW
Power Type	AC
Rated Torque	120 in·lb 13.5 N·m
SubCategory	EAU1 Series Electronic Actuators
SubCategory	Electric Actuators
Subtype	EAU1 Series Electronic Actuators
Suby Category	Electric Actuators
Thermal Protection	UL Listed Motor Thermal Protection
Torque Rating	120 in/lbs
Voltage	120 V
Voltage	120 VAC
