1T5HX0003 | T5 Model GFPP 3/4 HP 208-230/460 3Phase | Hayward

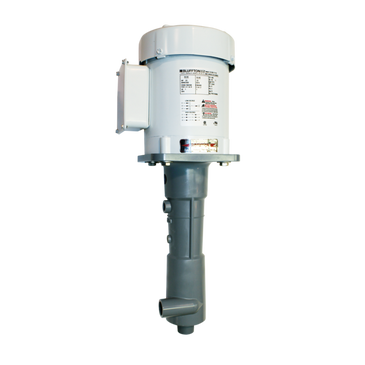

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 1T5HX0003

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Hayward 1T5HX0003 Documents

Datasheet More Info

Overview

Details for 1T5HX0003

T5 Model GFPP 3/4 HP 208-230/460 3Phase

T Series features a single, non-coupled motor/impeller shaft with a proprietary patent-pending PTFE shaft seal. “Patented” Pat. No.: 11,022,133; 9,745,993.

• Available in CPVC, GFPP and PVDF
• Single, Non-Coupled Motor Shaft 303 SS
• Proprietary, Patented PTFE Shaft Seal
• Extended Shaft Sleeve
• Solid, Stable One-Piece Shaft
• Seal Point Away from Weep Hole
• Less Vibration
• Runs True

Specifications

Item Number	1T5HX0003
Brand	Hayward
Category	Pumps
Class	T Series Vertical Pumps
End Connection Type	Threaded NPT
Horsepower	3/4 HP
Model	T-Series GFPP
Motor Type	TEFC
Phase	Three Phase
Pump Head Material	GFPP - Glass Filled Polypropylene
Sealing Material	PTFE
Series	T Series Vertical Seal Less Immersible Pumps
Sub Category	T Series Vertical Pumps
Subtype	Vertical Pumps
Type	Corrosion Resistant Pumps
Voltage	208/230-460
