RIBXGTV5 | Enclosed Split-Core Multi-Range AC Transducer, 0-5Vdc out terminals | Functional Devices

Current Transducer, Split Core, Multi-Range (0-20 Amp, 50 Amp, 100 Amp), 0-5 Vdc Terminal Output

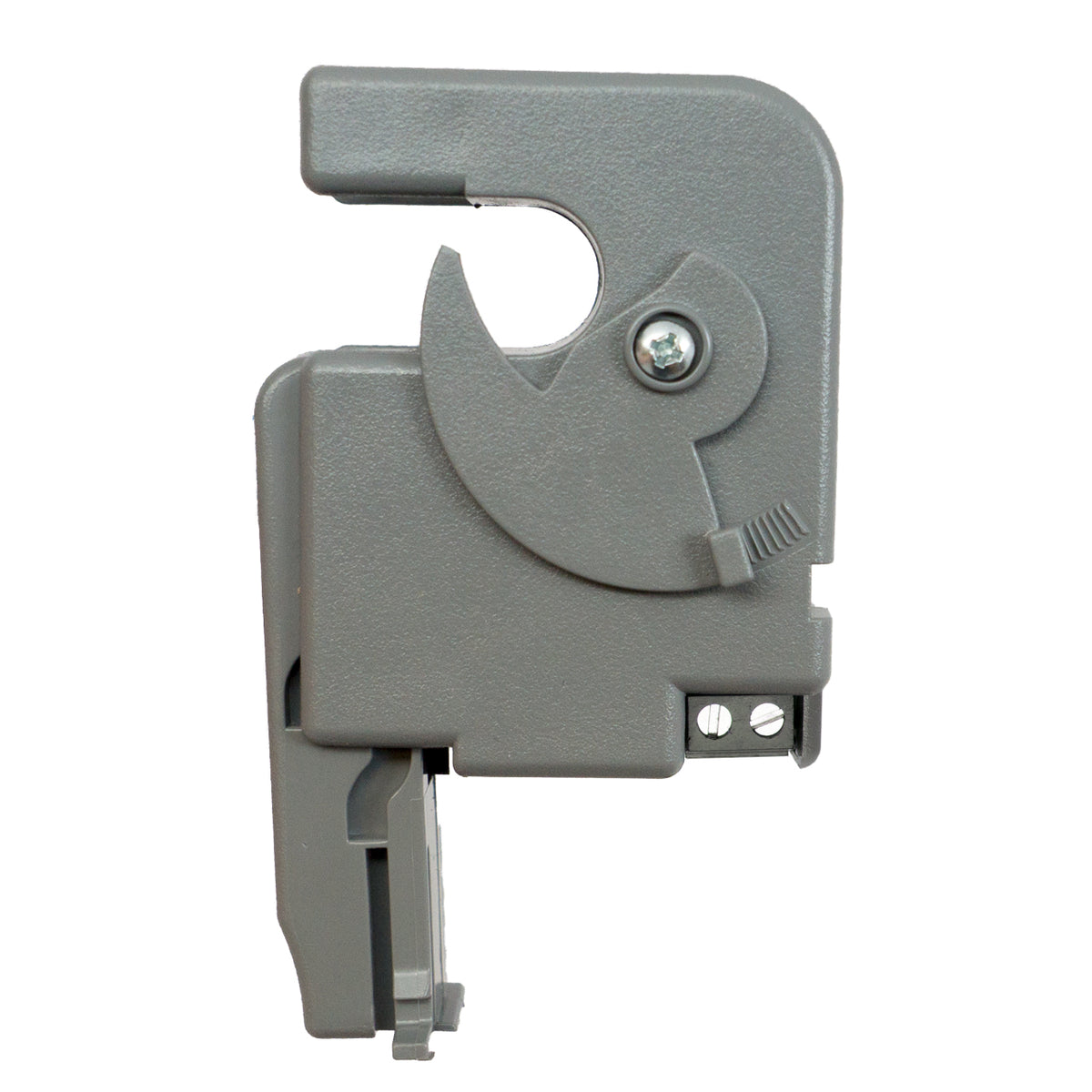

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RIBXGTV5

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Functional Devices RIBXGTV5 Documents

Datasheet Installation Instructions More Info

Overview

Details for RIBXGTV5

Enclosed Split-Core Multi-Range AC Transducer, 0-5Vdc out terminals

Specifications

Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Accuracy: 98.3% Full Scale
Loading: RIBXGTV5, (0-20 Amp), 5% Error @ 33 kΩ
RIBXGTV5, (0-50 Amp), 5% Error @ 15 kΩ
RIBXGTV5, (0-100 Amp), 5% Error @ 6.8 kΩ
Max Sense Voltage: 600 Vac
Approvals: UL Listed, UL916, UL864, California State Fire Marshal, C-UL, CE, RoHS
Mounting/Installation: Removable mounting tab provided. The wire clamp locks against the wire
being monitored, securing the unit in place.
Sensor Type: Split core with voltage output
