RIBMW24B-44-BC | BacNet Panel Relay 4in 20Amp SPDT 24Vac/dc with 4 BI + 4 BO | Functional Devices
BACnet MS/TP Network Relay Device, Four Binary Outputs + Override, Four Binary Inputs, 24 Vac/dc Power Input, 4.00" Track Mount
Documents and manuals
Functional Devices RIBMW24B-44-BC Documents
Overview
Details for RIBMW24B-44-BC

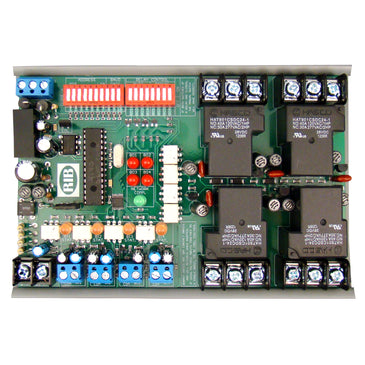

BacNet Panel Relay 4in 20Amp SPDT 24Vac/dc with 4 BI + 4 BO
Specifications
# Relays & Contact Type: Four (4) SPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Network Communication: Green LED
Relay Status: Red LED On = Activated
Binary Input Status: Pink LED On = Activated
Dimensions: 6.00˝ L x 4.00˝ W x 1.34˝ H
Track Mount: MT4-6 Mounting Track Provided
Approvals: UL Listed, UL916, C-UL, CE, RoHS, BTL Certified
Gold Flash: No
Relay Override Switch: DIP Switch Control
Network Media: Twisted Pair 22-24AWG, shielded recommended
Terminations: Functional Devices product installed at both ends of the MS/TP network – Use 120 Ω end of line resistors. All other cases – Follow instructions from the device installed at the end of the MS/TP network.
Polarity: Network is polarity sensitive
Baud Rate: 9600, 19200, 38400, 57600, 76800, 115200 (Dip Switch Selectable)
Contact Ratings:
20 Amp Resistive @ 277 Vac
20 Amp Ballast @ 120/277 Vac
16 Amp Electronic Ballast @ 277 Vac (N/O)
10 Amp Tungsten @ 120 Vac (N/O)
1110 VA Pilot Duty @ 277 Vac
770 VA Pilot Duty @ 120 Vac
2 HP @ 277 Vac
1 HP @ 120 Vac
Power Input Ratings:
24 Vac : 400 mA
24 Vdc : 190 mA
Specifications
Item Number | RIBMW24B-44-BC |
Brand | Functional Devices |
Network | BacNet |
