RIBMN24C | Panel Relay 2.75 15Amp SPDT 24Vac/dc | Functional Devices

Functional Devices | RIBMN24C

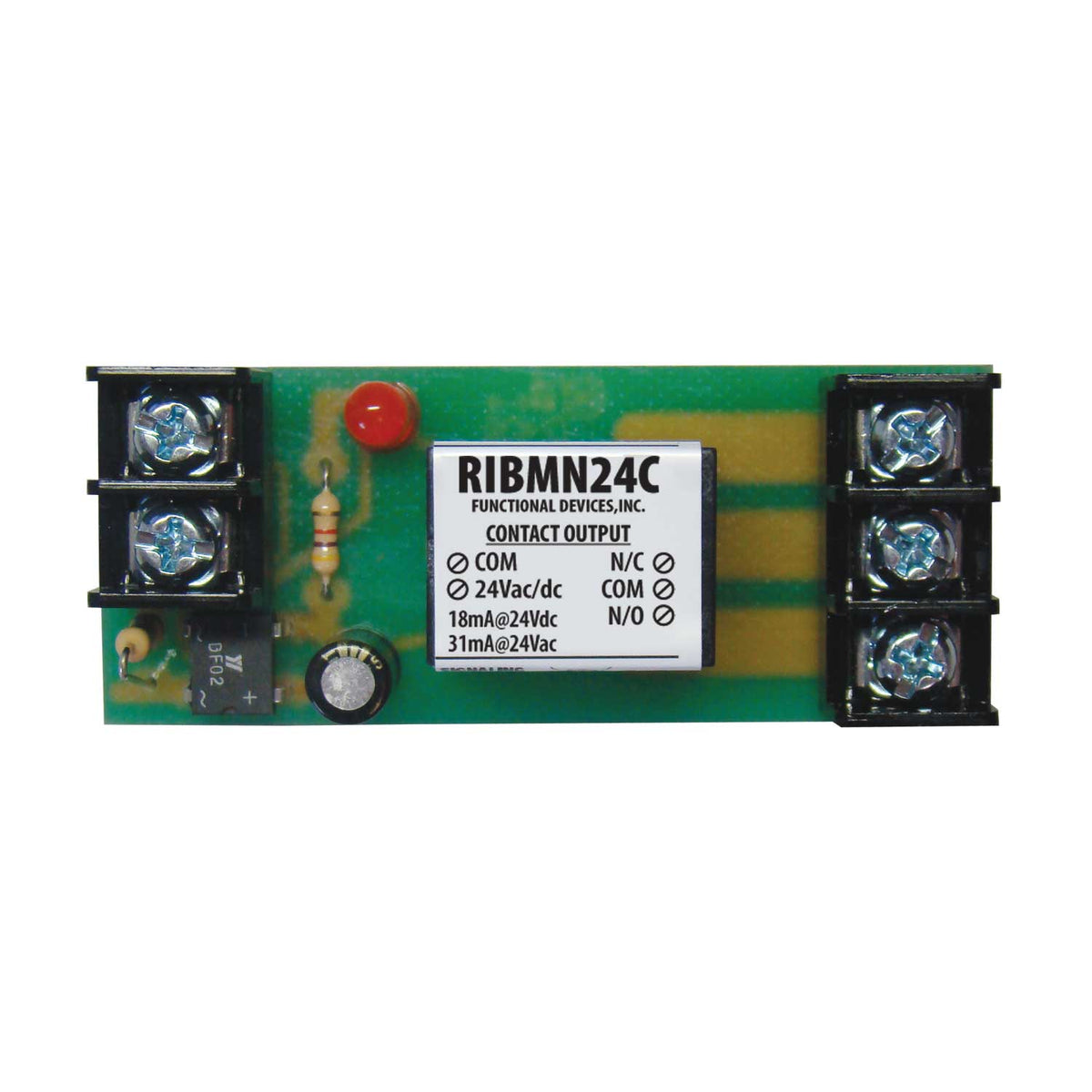

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for RIBMN24C

* Contact our sales office for current availability

Panel Relay 2.75 15Amp SPDT 24Vac/dc

Specifications

# Relays & Contact Type: Four (4) SPDT Continuous Duty Coils
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 6ms
Relay Status: LED On = Activated
Dimensions: 6.000? x 2.750? x 1.150?
Track Mount: 2.750? x 6.000? ; MT212-6 Mounting Track Included
Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
Gold Flash: No
Override Switch: No
Contact Ratings:
15 Amp General Use @ 125 Vac
10 Amp General Use @ 277 Vac
10 Amp Resistive @ 30 Vdc (N/O)
7 Amp Resistive @ 30 Vdc (N/C)
1/2 HP @ 125 Vac
1 HP @ 250 Vac
1/4 HP @ 277 Vac
C300 Pilot Duty
Coil Current:
26 mA @ 20 Vac
31 mA @ 24 Vac
48 mA @ 35 Vac
14 mA @ 20 Vdc
18 mA @ 24 Vdc
28 mA @ 35 Vdc
Coil Voltage Input:
24 Vac/dc ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 20 Vac / 20 Vdc

Specifications

Item Number RIBMN24C
Brand Functional Devices
Coil 24VAC/DC
Enclosed No
Manufacturer Functional Devices
Track Mounted Yes
Type Pilot
