RIBM02ZNDC | Panel Relay 4.000x2.875in 30Amp DPDT Class II Dry Contact Input 208-277Vac Power | Functional Devices

Dry Contact Relay, 30 Amp DPDT, Class 2 Dry Contact Input, 208-277 Vac Power Input, 4.00" Track Mount

Functional Devices | RIBM02ZNDC

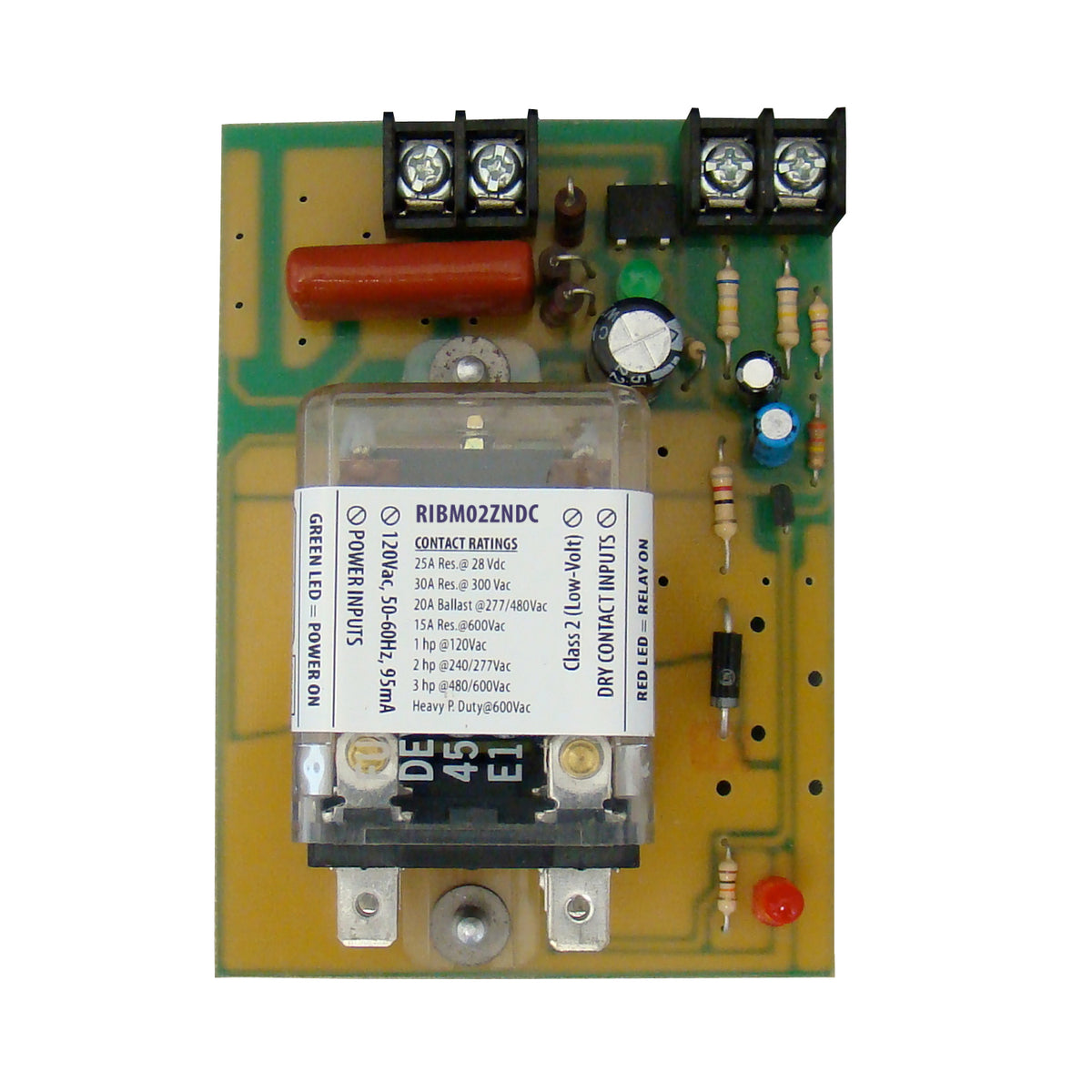

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to RIBM02ZNDC

Documents and manuals

Functional Devices RIBM02ZNDC Documents

Overview

Details for RIBM02ZNDC

Panel Relay 4.000x2.875in 30Amp DPDT Class II Dry Contact Input 208-277Vac Power

Specifications

# Relays & Contact Type: One (1) DPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Relay Status: Red LED On = Activated
Power Status: Green LED On = Activated
Dimensions: 2.875˝ x 4.000˝ x 1.750˝
Track Mount:  4.000” MT4 Mounting Track Sold Separately
Approvals: UL Component Recognized, UL916 C-UL, CE, RoHS
Gold Flash: Yes
Override Switch: No
Contact Ratings:
30 Amp Resistive @ 300 Vac
25 Amp Resistive @ 28 Vdc
15 Amp Resistive @ 600 Vac
3 HP @ 480-600 Vac
2 HP @ 240/277 Vac
1 HP @ 120 Vac
20 Amp Ballast @ 277-480 Vac
770 VA @ 120 Vac
1158 VA @ 240 Vac
1109 VA @ 277 Vac
1640 VA @ 480 Vac
NEMA B600 Pilot Duty
Power Input:
95 mA @ 208-277 Vac

Specifications

Item Number RIBM02ZNDC
Brand Functional Devices
Coil Dry
Enclosed No
Track Mounted Yes
Type Dry Contact
