Pilot Relay, 10 Amp DPDT, 24 Vac/dc/208-277 Vac Coil, NEMA 1 Housing
Overview
Details for RIB2402D

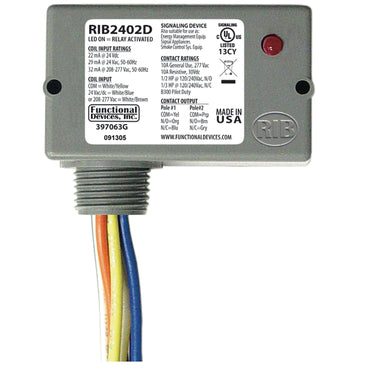

Enclosed Relay 10Amp DPDT 24Vac/dc/208-277Vac
Specifications
# Relays & Contact Type: One (1) DPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 8ms
Relay Status: LED On = Activated
Dimensions: 1.70˝ x 2.80˝ x 1.50˝ with .50˝ NPT nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL
California State Fire Marshal, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: No
Contact Ratings:
10 Amp Resistive @ 30 Vdc
10 Amp General Use @ 277 Vac
1/2 HP @ 120/240 Vac (N/O)
1/3 HP @ 120/240 Vac (N/C)
B300 Pilot Duty
120 Vac 30A Make 3A Break (360 VA)
240 Vac 15 A Make 1.5A Break (360 VA)
208 Vac 17.3A Make 1.73A Break (360 VA)
277 Vac 13A Make 1.3A Break (360 VA)
24 Vac 30A Make 5A Break (120VA) 5A Max
Coil Current:
24 mA @ 18 Vac
32 mA @ 24 Vac
40 mA @ 30 Vac
36 mA @ 208-277 Vac
Coil Voltage Input:
24 Vac/dc ; 208-277 Vac ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 18 Vac / 20 Vdc
Specifications
| Item Number | RIB2402D |
| Brand | Functional Devices |
| Coil | 208-277VAC |
| Coil | 24VAC/DC |
| Enclosed | Yes |
| Track Mounted | No |
| Type | Pilot |
