RIB2401D-N4 | Enclosed Relay NEMA4/4X 10Amp DPDT 24Vac/dc/120Vac | Functional Devices
Pilot Relay, 10 Amp DPDT, 24 Vac/dc/120 Vac Coil, NEMA 4X Clear Housing
Documents and manuals
Functional Devices RIB2401D-N4 Documents
Overview
Details for RIB2401D-N4

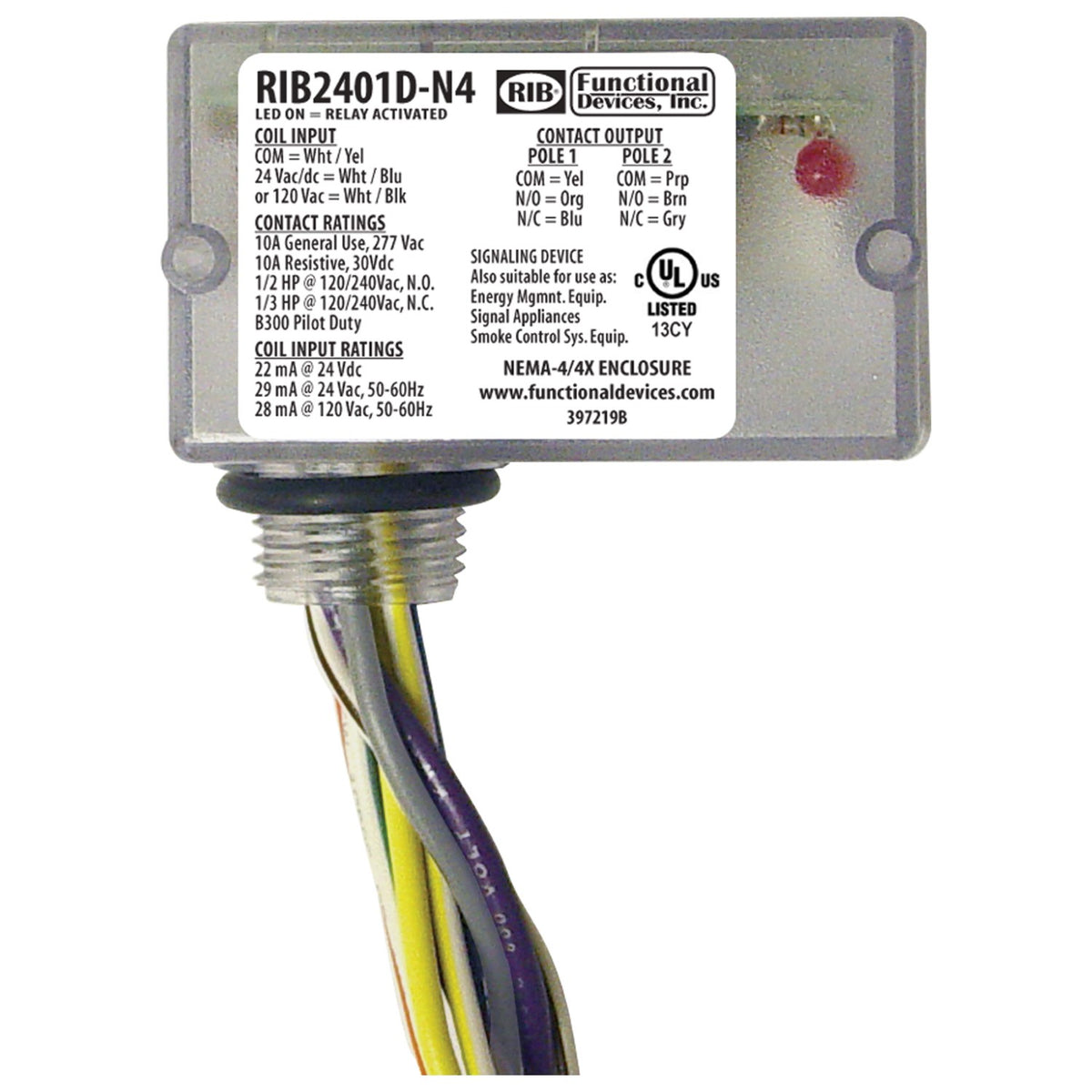

Enclosed Relay NEMA4/4X 10Amp DPDT 24Vac/dc/120Vac
Specifications
# Relays & Contact Type: One (1) DPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 8ms
Relay Status: LED On = Activated
Dimensions: 1.70˝ x 2.80˝ x 1.50˝ with .50˝ NPT nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL916, UL864, C-UL California State Fire Marshal, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override Switch: No
Contact Ratings:
10 Amp Resistive @ 30 Vdc
10 Amp General Use @ 277 Vac
1/2 HP @ 120/240 Vac (N/O)
1/3 HP @ 120/240 Vac (N/C)
B300 Pilot Duty
120 Vac 30A Make 3A Break (360 VA)
240 Vac 15 A Make 1.5A Break (360 VA)
208 Vac 17.3A Make 1.73A Break (360 VA)
277 Vac 13A Make 1.3A Break (360 VA)
24 Vac 30A Make 5A Break (120VA) 5A Max
Coil Current:
24 mA @ 18 Vac
32 mA @ 24 Vac
40 mA @ 30 Vac
31 mA @ 120 Vac
20 mA @ 20 Vdc
24 mA @ 24 Vdc
36 mA @ 30 Vdc
Coil Voltage Input:
24 Vac/dc ; 120 Vac ; 50-60 Hz
Drop Out = 3 Vac / 3.8 Vdc
Pull In = 18 Vac / 20 Vdc
Specifications
| Item Number | RIB2401D-N4 |
| Brand | Functional Devices |
| Coil | 120VAC |
| Coil | 24VAC/DC |
| Enclosed | Yes |
| Track Mounted | No |
| Type | Pilot |
