RIB12P | Enclosed Relay 20Amp DPDT 12Vac/dc | Functional Devices
Power Relay, 20 Amp DPDT, 12 Vac/dc Coil, NEMA 1 Housing
Overview
Details for RIB12P

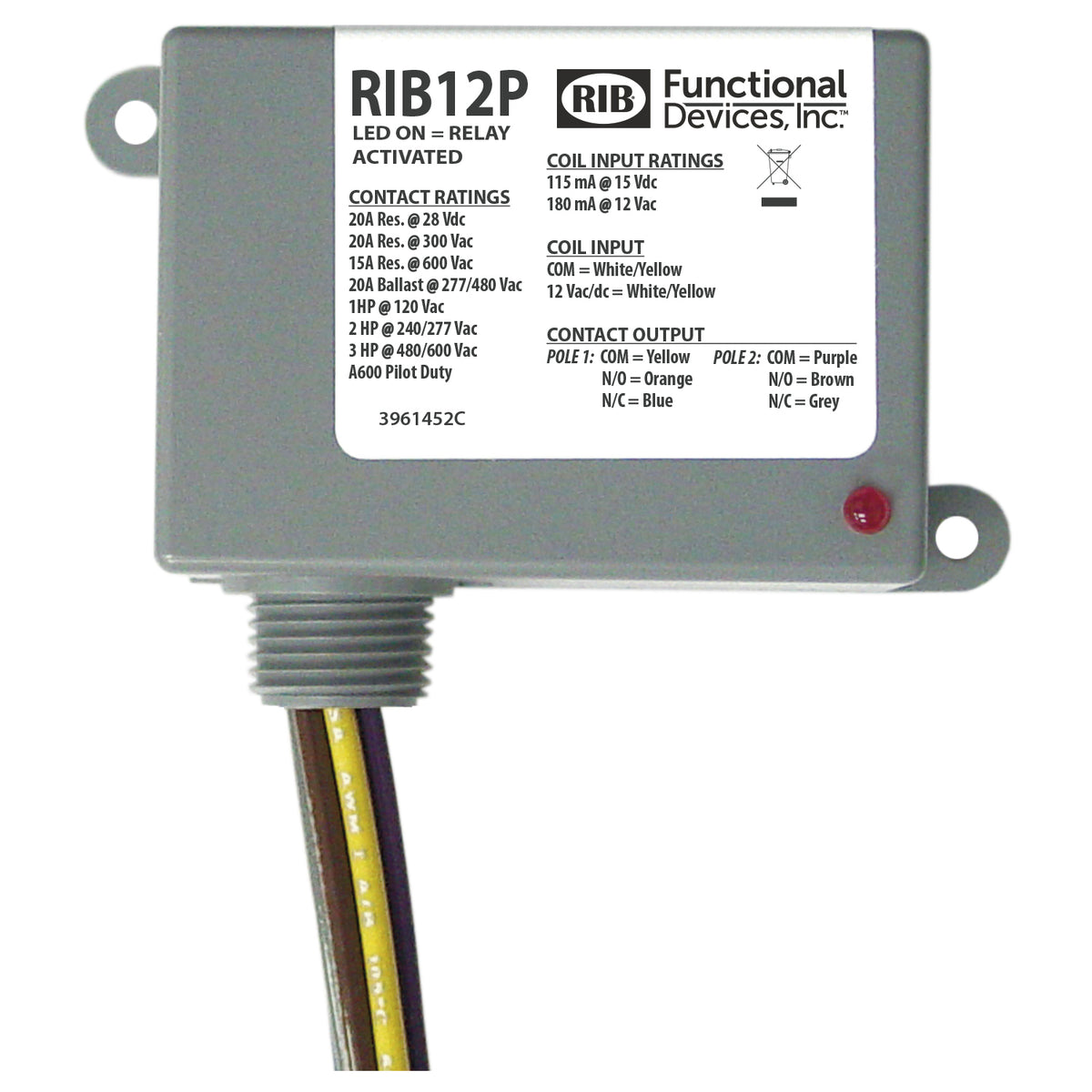

Enclosed Relay 20Amp DPDT 12Vac/dc
Specifications
# Relays & Contact Type: One (1) DPDT Continuous Duty Coil
Expected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Humidity Range: 5 to 95% (noncondensing)
Operate Time: 18ms
Relay Status: LED On = Activated
Dimensions: 2.30˝ x 3.20˝ x 1.80˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL60947, C-UL, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: Yes
Override Switch: No
Contact Ratings:
20 Amp Resistive @ 300 Vac
20 Amp Resistive @ 28 Vdc
15 Amp Resistive @ 600 Vac
20 Amp Ballast @ 277-480 Vac
Not rated for Electronic Ballast
770 VA Pilot Duty @ 120 Vac
1158 VA Pilot Duty @ 240 Vac
1109 VA Pilot Duty @ 277 Vac
1640 VA Pilot Duty @ 480 Vac
Heavy Pilot Duty @ 600 Vac
3 HP @ 480-600 Vac
2 HP @ 240-277 Vac
1 HP @ 120 Vac
Coil Current:
115 mA @ 10 Vac
180 mA @ 12 Vac
79 mA @ 11 Vdc
90 mA @ 12 Vdc
115 mA @ 15 Vdc
Coil Voltage Input:
12 Vac/dc ; 50-60 Hz
Drop Out = 4.5 Vac / 4.8 Vdc
Pull In = 9.7 Vac / 11 Vdc
Specifications
| Item Number | RIB12P |
| Brand | Functional Devices |
| Coil | 12VAC/DC |
| Enclosed | Yes |
| Track Mounted | No |
| Type | Power |
