22X14 ND | Rectangular Damper | 22X14 ND MOTORIZED DAMPER | EWC Controls

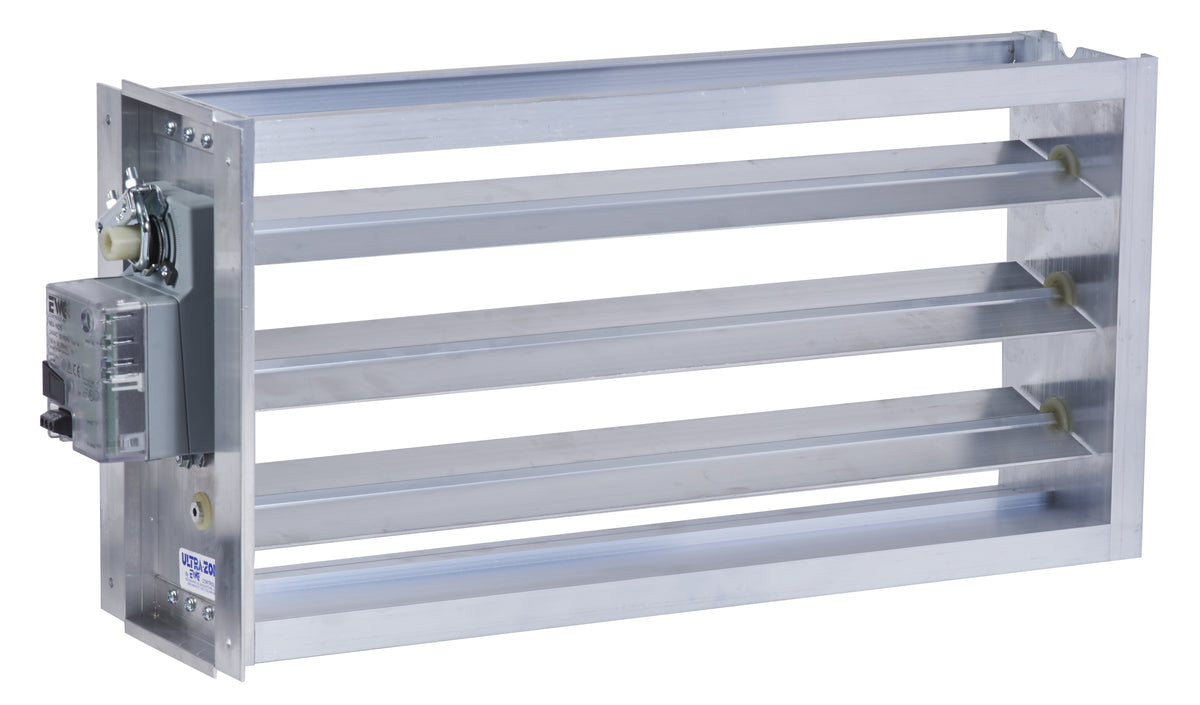

This damper is 22" by 14". The motor/lever is installed on the 14" side. Full dimensional specifications are in the datasheet below.
Overview
Details for 22X14 ND
Rectangular Damper | 22X14 ND MOTORIZED DAMPER
The MA-15S motor actuator is easy to install, easy to wire up, and comes with a 5 year warranty. The superior design insures long life and zero maintenance. The Motor can be oriented in any position in a conditioned area. The UL Listed Motor Actuator is a 24vac 3 wire power open & power close type rated at 18 inch lbs. of torque and 15 second travel time. The MA-15S can also operate in floating mode and is compatible with Carrier® Infinity & Bryant® Evolution communicating zone control systems. The MA-15S includes an integrated wiring terminal block, and has a NEMA1 rated housing. Dual End-Stop adjustments allow for a maximum Open and Minimum Close field position capability
Specifications
| Item Number | 22X14 ND |
| Brand | EWC Controls |
| Motorized | Yes |
| Shape | Rectangular |
| Size (in) | 22 x 14 |
| Spring Return | Non-Spring Return |
| Type | Rectangular Dampers |
