20X10 ND | Rectangular Damper | 20X10 ND MOTORIZED DAMPER | EWC Controls
This damper is 20" by 10". The motor/lever is installed on the 10" side. Full dimensional specifications are in the datasheet below.

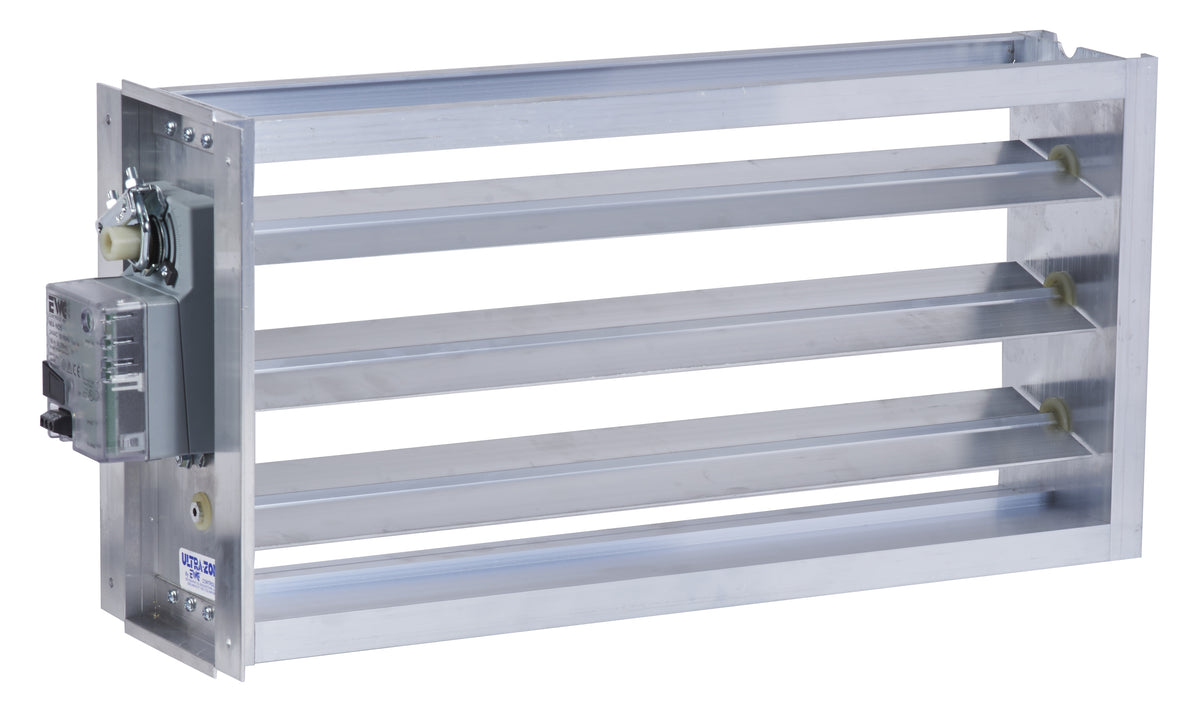

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 20X10 ND
Overview
Details for 20X10 ND
ACTUATORS ARE INSTALLED ON THE 2ND DIMENSION, PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED
Rectangular Damper | 20X10 ND MOTORIZED DAMPER
- Heavy Duty extruded 0.80” aluminum construction.
- Glass Filled Nylon Bearings provide quiet operation.
- Overlapping parallel blades for low leakage.
- Power open / Power close function at 35 seconds.
- UL Listed Motor Actuator is rated for 24volt ac/dc.
- 3 wire power open & power close.
- 18”lb / 2Nm torque rating.
- 1 watt (1.5va) power requirement.
- Motor Actuator housing is rated NEMA1.
- End-Stop adjustment allows for a percentage of relief air (leakage) to be set when the damper is powered to the closed position. You may set a maximum open position as well.
- Bright green & red LED’s indicate damper open/closed position, regardless of end stop adjustment.
- Designed to operate at static pressures up to 1.5” wc.
- Available in 6" x 8” thru 30" x 30" in one inch increments. Custom sizing is always available.
Specifications
Item Number | 20X10 ND |
Brand | EWC Controls |
Motorized | Yes |
Shape | Rectangular |
Size (in) | 20 x 10 |
Spring Return | Non-Spring Return |
Type | Rectangular Dampers |
