Documents: 16X16 ND-RSD NC

Datasheet

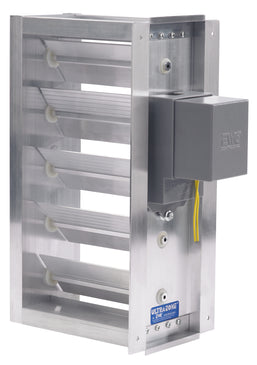

16X16 ND-RSD NC | Rectangular Damper | 16X16 ND MOTORIZED DAMPER SPRING RETURN - NORMALLY CLOSED | EWC Controls

This damper is 16" by 16". The motor/lever is installed on the 16" side. Full dimensional specifications are in the datasheet below.

Brand: EWC ControlsSKU: 16X16 ND-RSD NC

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 16X16 ND-RSD NC

Jump to: Overview & Specifications Reviews

Overview Details for 16X16 ND-RSD NC

ACTUATORS ARE INSTALLED ON THE 2ND DIMENSION, PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED

Rectangular Damper | 16X16 ND MOTORIZED DAMPER SPRING RETURN - NORMALLY CLOSED

Model ND-RSD is a rectangular parallel blade damper constructed from heavy duty extruded aluminum with nylon bearings for quiet operation. The Motor Actuator is a 24vac ( Synchronous motor. It is typically a Power Close / Spring Open construction. The damper can be ordered as Power Open / Spring Close. The Model ND-RSD cannot be field-reversed. The motor can get very warm when energized/stalled for extended time periods. To avoid overheating, do not insulate or encapsulate the motor housing. Doing so will damage the actuator assembly and void the warranty. 6watt / 8va) Synchronous See reverse side for wiring solutions.
