12X12 ND-RSD NO | Rectangular Damper | 12X12 ND MOTORIZED DAMPER SPRING RETURN - NORMALLY OPEN | EWC Controls
This damper is 12" by 12". The motor/lever is installed on the 12" side. Full dimensional specifications are in the datasheet below.
Documents and manuals
EWC Controls 12X12 ND-RSD NO Documents
Overview
Details for 12X12 ND-RSD NO
Rectangular Damper | 12X12 ND MOTORIZED DAMPER SPRING RETURN - NORMALLY OPEN
Description

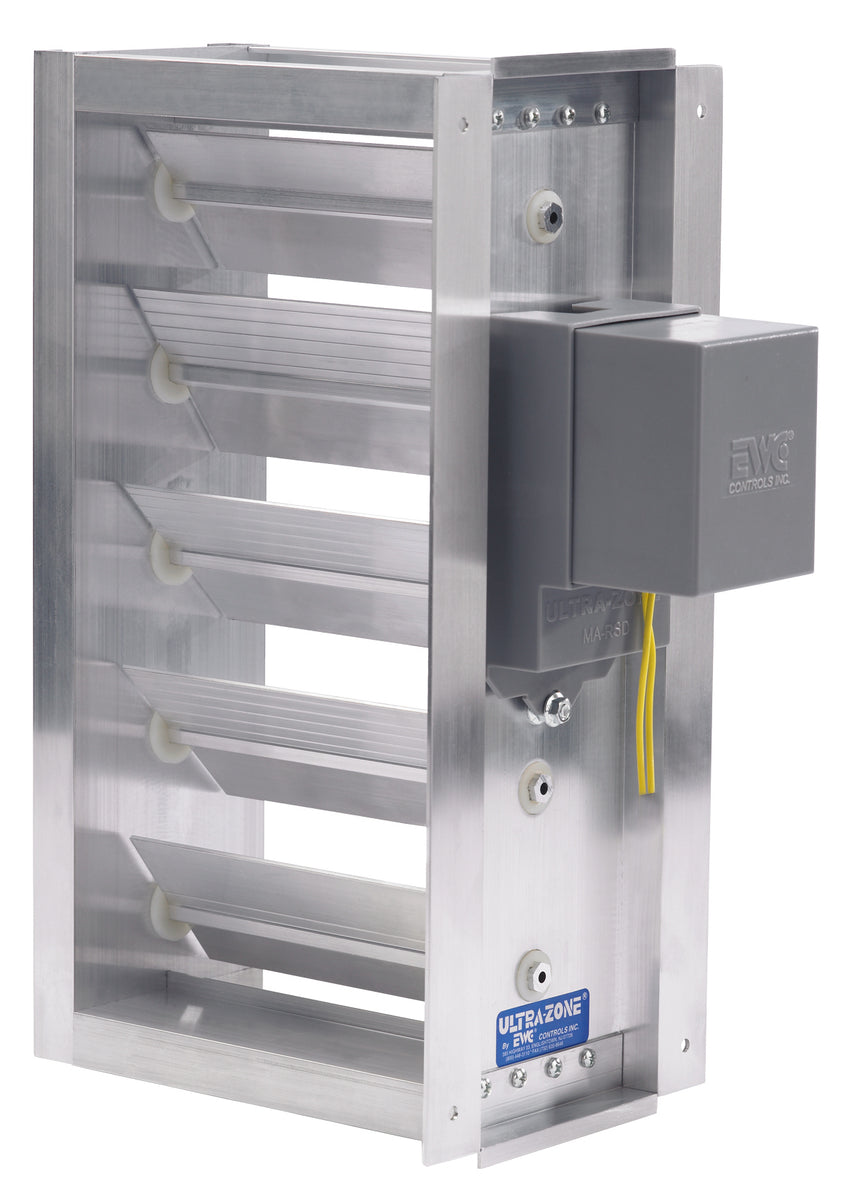

Model ND-RSD is a rectangular parallel blade damper constructed from heavy duty extruded aluminum with nylon bearings for quiet operation. The Motor Actuator is a 24vac Synchronous motor. It is typically a Power Close / Spring Open construction. The damper can be ordered as Power Open / Spring Close. The Model ND-RSD cannot be field-reversed.
The motor can get very warm when energized/stalled for extended time periods. To avoid overheating, do not insulate or encapsulate the motor housing. Doing so will damage the actuator assembly and void the warranty. Synchronous See reverse side for wiring solutions.
Specifications
Item Number | 12X12 ND-RSD NO |
Brand | EWC Controls |
Motorized | Yes |
Shape | Rectangular |
Size (in) | 12 x 12 |
Spring Return | Spring Return (NO) |
Type | Rectangular Dampers |
