10 RSD | 10 Inch Round Motorized Spring Return Damper | EWC Controls

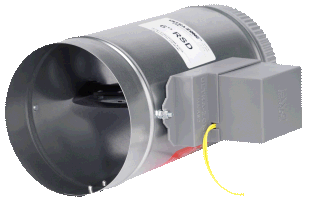

EWC Controls | 10 RSD
The photo is for representation purposes only and may not be a photo of product being purchased.

Overview

Details for 10 RSD



PHOTO IS GENERIC AND MAY NOT REPRESENT THE PART BEING ORDERED

EWC DAMPERS ARE BUILT TO ORDER AND CANNOT BE CANCELED OR RETURNED UNLESS RENDERED DEFECTIVE BY MANUFACTURER UPON INSPECTION

10 Inch Round Motorized Spring Return Damper

Description

Model RSD is a round single blade damper constructed from heavy (24) gauge galvanized steel. The 24 volt motor actuator is direct coupled to the drive shaft. It is a power closed/spring open action. (standard). The damper can be field reversed to a power open/spring closed action. The RSD has a double layered blade design with an integrated Poron® foam gasket to provide a seal when the damper is in the closed position. The RSD also has a Travel Limiter to prevent the damper from closing 100% if your application requires. Note: 18” and 20” RSD models utilize a Belimo TF series actuator for increased reliability. The hysteresis motor can get very warm when energized/stalled for extended time periods. To avoid overheating, DO NOT cover/encapsulate or insulate the motor housing. Doing so will damage the actuator assembly

Specifications

Item Number
10 RSD
Brand
EWC Controls
Manufacturer
EWC Controls
Motorized
Yes
Shape
Round
Size (in)
10
Spring Return
Spring Return
Type
Round Dampers

Documents

EWC Controls 10 RSD Documents

Reviews

Brand: EWC ControlsSKU: 10 RSD

Web Price:

$144.33
Availability: This product is currently available to purchase
This item ships FREE
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F
