Documents: W199AX-15
W199AX-15 | DPDT | 40 amp rating (AC) | 120 VAC | 50/60 HZ | 290 Ω.DPDT | 40 Amp rating(AC) | 240 VAC | 50/60 HZ | 1200 Ω. | Dwyer
DPDT, 40 amp rating (AC), 120 VAC, 50/60 HZ, 290 Ω.DPDT, 40 Amp rating(AC), 240 VAC, 50/60 HZ, 1200 Ω.

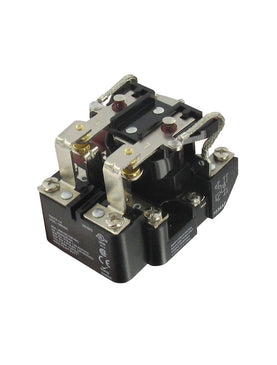

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to W199AX-15
Overview Details for W199AX-15
See catalog product page for full listing
DPDT | 40 amp rating (AC) | 120 VAC | 50/60 HZ | 290 Ω.DPDT | 40 Amp rating(AC) | 240 VAC | 50/60 HZ | 1200 Ω.
Series 199 Open Style Power Relays
DPDT, 40 Amp Rating (AC or DC)
The Series 199 Open Style Power Relays are designed for high AC and DC current applications up to 40 Amps. These mercury-free DPDT relays are available in a variety of trigger voltages and coil resistances to fit most common applications. The riveted housing construction increases the durability and reduces the effects of vibration on the relay.
Note: All purchases must be 10 units or more.
Specifications
- Series
- 199 Open Style Power Relays
- Category/Type
- Process Control
- Type
- Relays
- Series
- 199 Open Style Power Relays
- Operating and Load Voltage Range
- 24 to 240 VAC; 24 VDC.
- Operating Range (% of Nominal)
- 85 to 110% (AC operated); 80 to 110% (DCoperated).
- Electrical Connection
- AgSnO screw terminals.
- Switching Operation
- DPDT.
- Electrical Rating
- 40 A @ 300 VAC/28 VDC; 5 A @ 480/600 VAC.
- Temperature Limits
- >Storage: -67 to 212°F (-55 to 100°C);Operation: -67 to 131°F (-55 to 55°C).
- Power Consumption
- 10 VA; 4 W.
- Cycle Life
- 100;000 cycles (electrical); 1;000;000 cycles (mechanical).
- Housing
- Plastic phenolic.
- Weight
- 8 to 11 oz (227 to 312 g).
- Agency Approvals
- CE; CSA; RoHS; cUL; UL; cUR; UR.
