VB-01 | Volume booster | 1.02 Cv | 1/4" NPT in/out connection | aluminum | Dwyer

Volume booster, 1.02 Cv, 1/4" NPT in/out connection, aluminum

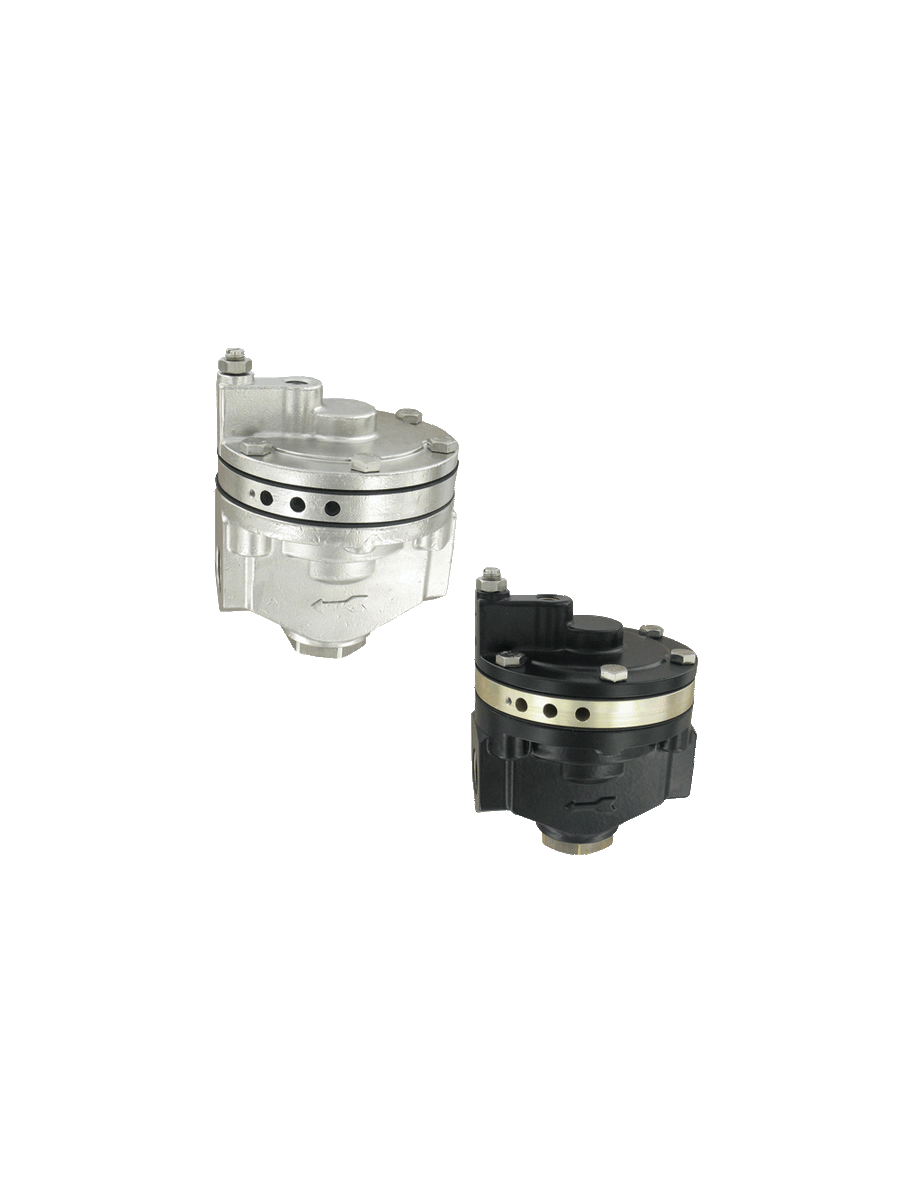

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VB-01

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer VB-01 Documents

Instruction Manual Series VB Catalog Page More Info

Overview

Details for VB-01

See catalog product page for full listing

Volume booster | 1.02 Cv | 1/4" NPT in/out connection | aluminum

SERIES VB VOLUME BOOSTERS

Economical, 1:1 Ratio

The Series VB Volume Boosters are a one to one signal to output relay and an ideal solution to increasing valve stroke speed. A large input signal change to the booster delivers high volume for quick throttling control. Volume booster responds to the slightest changes in input signal, which in turn increases accuracy of the output of air pressure to the actuator. This booster receives the positioner’s signal output and supplies the proper air pressure to theactuator to reduce response and adjustment time. Available in aluminum or stainless steel.

Product Applications

Used with pneumatic control valves

Responds to the slightest change in input signal
Supplies constant air pressure at a 1:1 ratio
