V8-WP | Vane operated flow switch with weatherproof enclosure (phenylpolioxide). | Dwyer
Vane operated flow switch with weatherproof enclosure (phenylpolioxide).

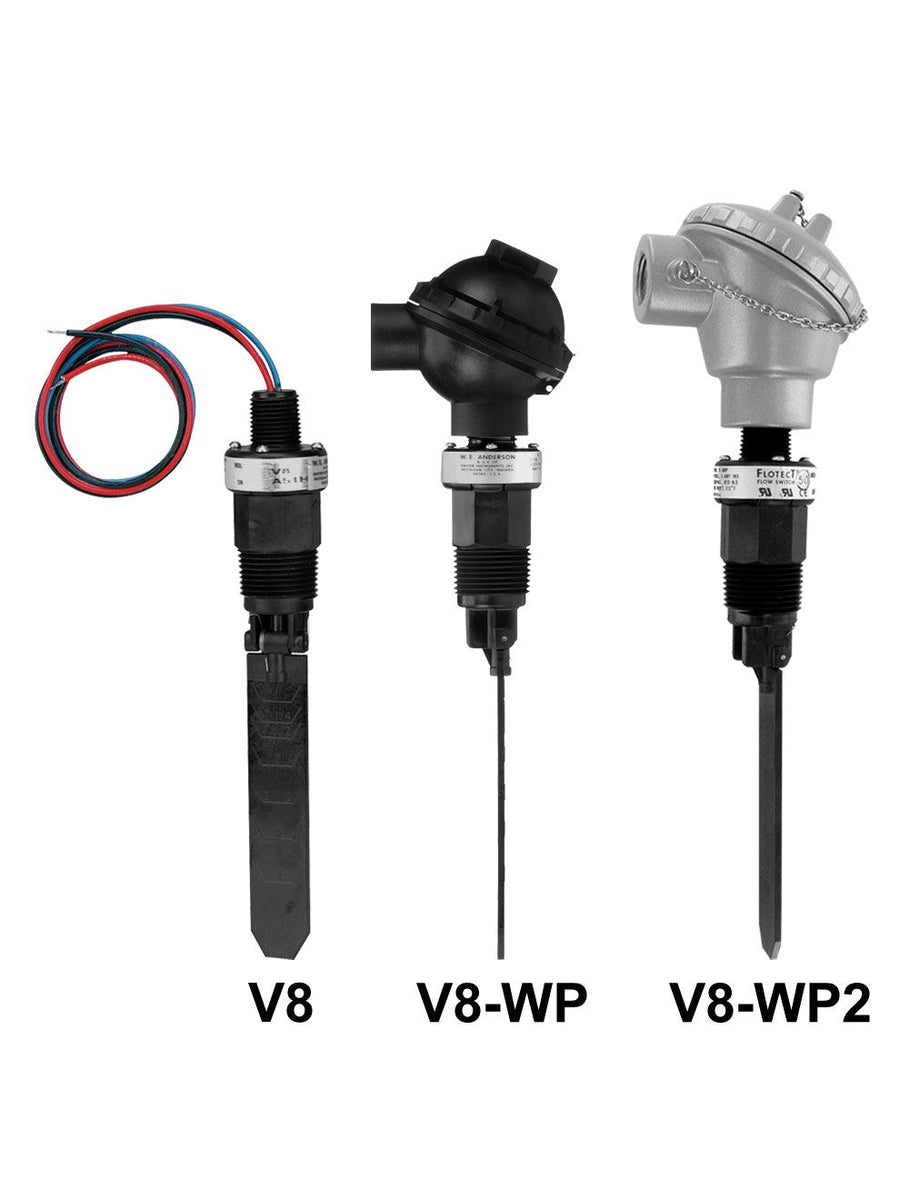

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V8-WP
Documents and manuals
Dwyer V8-WP Documents
Overview
Details for V8-WP
See catalog product page for full listing
Vane operated flow switch with weatherproof enclosure (phenylpolioxide).
SERIES V8 FLOTECT® VANE OPERATED FLOW SWITCH
Field Adjustable – 1 to 6 Inch Pipe, Leak Proof Body, Chemical Resistance
The Series V8 Flotect® Vane Operated Flow Switches are ideal for protecting unattended equipment from damage or loss of production. This Series is available for installation in a 1 to 6" pipe with operating pressures are up to 150 psig (10 bar) and temperatures to 212°F (100°C).
Product Applications
- Chemical processing
- Air conditioning
- Refrigeration
- Heating systems
- Cooling lines
- Machinery
- Liquid transfer systems
- Water treatment
- Food processing
- Machine tools
- Suitable for mounting in a protected environment with UL recognition as an industrial motor controller per UL standard 508
- Increased product life with a free-swinging vane which attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm with no bellows, springs, or seals to fail
- Excellent chemical resistance and leak proof body and vane constructed of tough durable polyphenylene sulfide
- So
Specifications
- Series
- V8 FLOTECT® VANE OPERATED FLOW SWITCH
- Category/Type
- Flow
- Type
- Flow Switches
- Series
- V8 FLOTECT® VANE OPERATED FLOW SWITCH
- Service
- Compatible gases or liquids.
- Wetted Materials
- Vane and Body: Polyphenylene Sulfide (PPS); Pin and spring: 316 SS or Inconel®; Magnet: Ceramic 8.
- Temperature Limit
- 212°F (100°C).
- Pressure Limit
- 150 psig (10 bar).
- Enclosure Rating
- General purpose; WP/WP2 option is weatherproof.
- Switch Type
- SPDT snap switch; MV option: SPDT gold contact snap switch.
- Electrical Rating
- 5 A @ 125/250 VAC; 5 A resistive; 3 A inductive @ 30 VDC. MV option: 1 A @ 125 VAC; 1 A resistive; 0.5 A inductive @ 30 VDC.
- Electrical Connections
- 18 AWG 18" (460 mm) long.
- Conduit Connection
- 1/2" male NPT; 1/2" female NPT on WP and WP2.
- Process Connection
- 1" male NPT.
- Mounting Orientation
- Actuation/deactuation flow rates are based on horizontal pipe run and are nominal values. Unit cannot be used with vertical down flow.
- Set Point Adjustment
- Vane is trimmable.
- Weight
- 4.5 oz (0.13 kg).
- Agency Approvals
- CE; cURus.
