TDFT | Thermal dispersion flow transmitter | 316L Stainless steel | 1/2" NPT process connection | 1/2-2" pipe size | Dwyer
Thermal dispersion flow transmitter, 316L Stainless steel, 1/2" NPT process connection, 1/2-2" pipe size

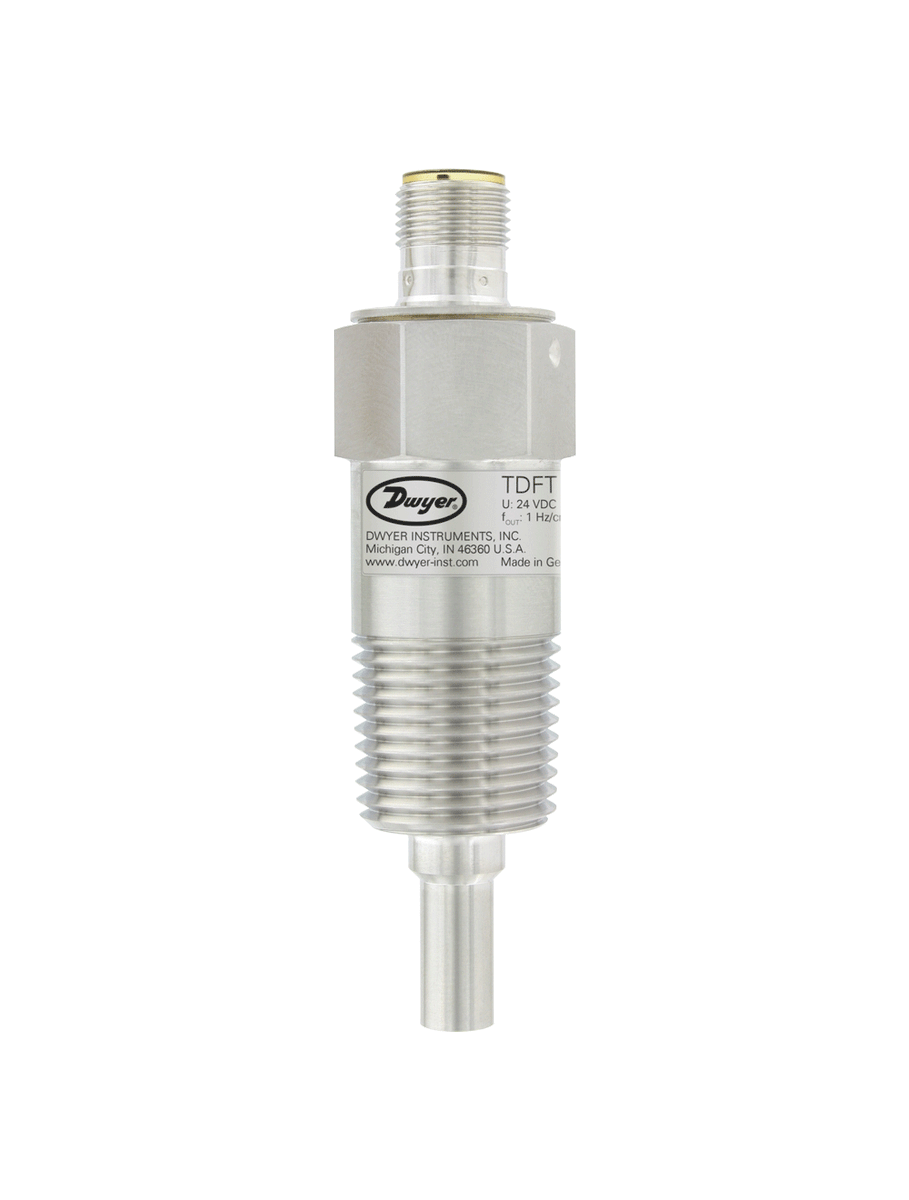

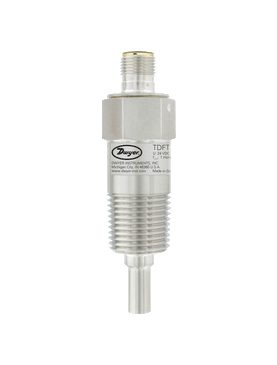

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TDFT
Documents and manuals
Dwyer TDFT Documents
Overview
Details for TDFT
See catalog product page for full listing
Thermal dispersion flow transmitter | 316L Stainless steel | 1/2" NPT process connection | 1/2-2" pipe size
Model TDFT Thermal Dispersion Flow Transmitter
Non-Mechanical Low Pressure Drop
The Model TDFT Thermal Dispersion Flow Transmitter has continuous frequencyoutput. It fits applications with pipe sizes from 1/2" to 2" (12.7 to 50 mm) and features316L stainless steel housing for use in harsh environments.
Product Applications
- Chiller systems
- Boiler systems
- Liquid transfer systems
- Flow measurement in low flow applications
- Continuous frequency signal from measured flow velocity
- Low pressure drop
- No moving parts
Specifications
- Service
- Compatible water-based fluids.
- Wetted Materials
- 316L SS.
- Range
- 1-3 ft/s (0.05-0.7 m/s).
- Repeatability
- ±10% at 68°F (20°C).
- Temperature Limits
- Ambient: -4 to 158°F (-20 to 70°C); Process: 14 to 140°F (-10 to 60°C); Storage: -40 to 158°F (-40 to 70°C).
- Pressure Limit
- 362 psi (25 bar).
- Response Time
- 1 to 10 seconds.
- Power Requirements
- 24 VDC.
- Current Consumption
- <50 mA.
- Electrical Rating
- 80 mA.
- Output Frequency
- 5 to 74 Hz.
- Electrical Connections
- 1 x M12.
- Process Connection
- ½” NPT.
- Enclosure Rating
- IP67.
- Housing Material
- 316L SS.
- Mounting Orientations
- Horizontal or vertical.
- Weight
- 0.274 lb (124.5 g).
- Agency Approvals
- CE.
