SVT-2 | Solenoid valve enclosure with timer | 90-240 VAC | 2 valves. | Dwyer

Solenoid valve enclosure with timer, 90-240 VAC, 2 valves.

Brand: DwyerSKU: SVT-2

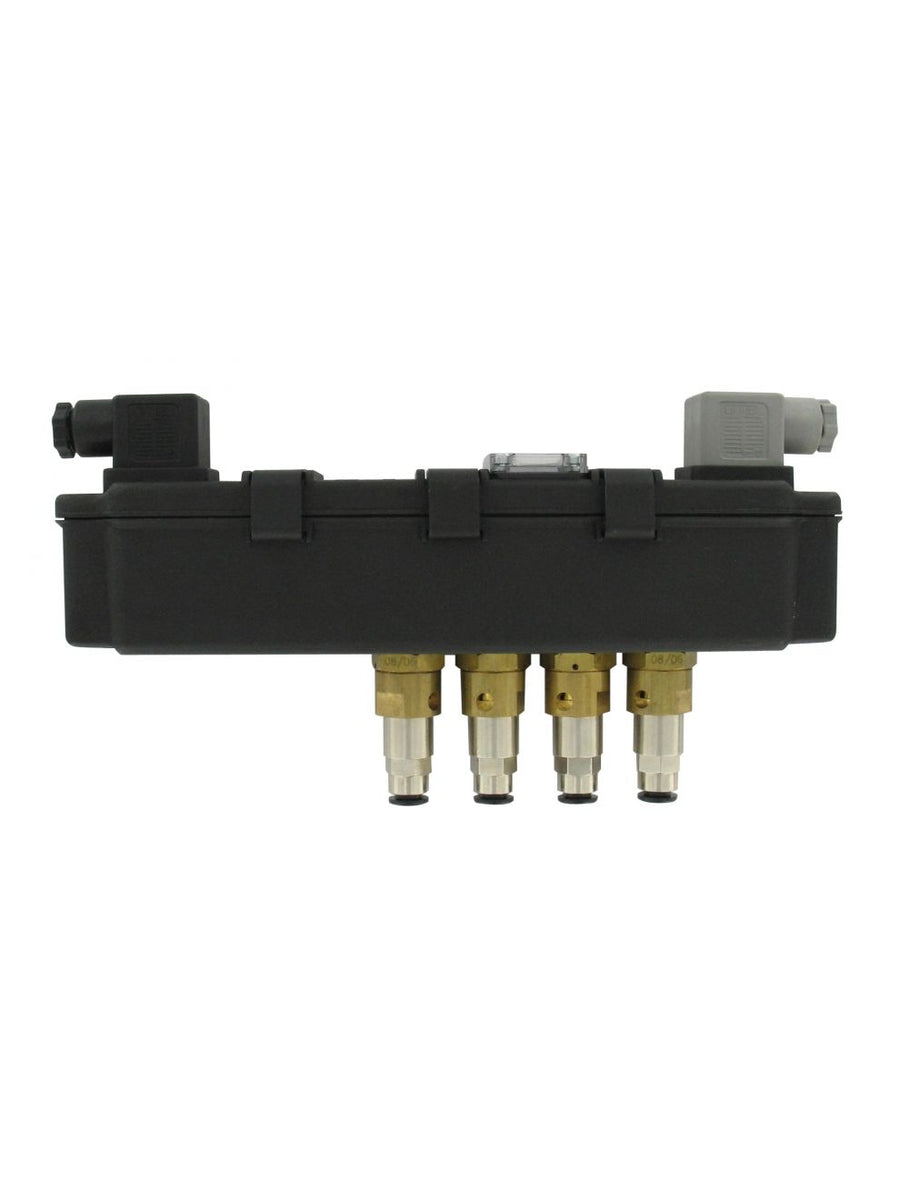

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SVT-2

Jump to: Overview & Specifications Reviews

Overview Details for SVT-2

See catalog product page for full listing

Solenoid valve enclosure with timer | 90-240 VAC | 2 valves.

SERIES SVT SOLENOID VALVE ENCLOSURE WITH TIMER

Compact Size, NEMA 4X Enclosure

The Series SVT Solenoid Valve Enclosure with Timer is a compact, reliable and economic package designed for small to medium filtration systems. It combines a timer board and solenoid valve enclosure into one package, eliminating the need for separate enclosures and wiring. The SVT is available with 2, 4 or 6 valves. For larger systems expansion modules can be daisy chained to the SVT for a maximum of 60 outputs. The universal power supply accepts 90-240 VAC at either 50 or 60 Hz for both domestic and international requirements. On-Demand Cleaning or Down Time Cleaning functions can be selected with a simple dip-switch. Time-On and Time-Off settings are selected using two potentiometers.
For on demand systems, a Dwyer® A3000 Photohelic® gage or Series 1950 pressure switch may be used with the SVT.

Note: SVTE modules are powered from the main enclosure and can be used with eitherthe 90 to 240 VAC or the 24 VDC/VAC Model SVT’s.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Dust collection
Pneumatic conveying
Industrial vacuums

Minimize installation time and costs with one enclosure for electronics and valves
Easy wiring installation that accepts any global voltage input
Quick customization configuration with field selectable cleaning functions and on/off settings

Specifications

Series: SVT SOLENOID VALVE ENCLOSURE WITH TIMER
Category/Type: Process Control
Type: Timers
Series: SVT SOLENOID VALVE ENCLOSURE WITH TIMER
Service: Compatible gasses; filtered and oil-free.
Wetted Materials: Pilot Body: Brass; Spring: 302 SS; Diaphragm: NBR.
Temperature Limits: 14 to 140°F (-10 to 60°C).
Pressure Limit: 145 psi (10 bar).
Power Requirements: 90 to 240 VAC; 50 or 60 Hz or 24 VAC 50 to 60 Hz; 24 VDC; ±10%.
Power Consumption: 25 VA/25 W.
Fuse: 90 to 240 VAC 0.5 A delayed; 24VAC/DC 1.5 A delayed.
Electrical Connection: 2 DIN A 43652 connectors.
Enclosure Rating: NEMA 4X (IP65).
Enclosure Material: Polyamide with carbon fiber; polycarbonate; TPE rubber.
Process Connection: 1/4" OD Push to Connect.
Mounting Orientation: Any position.
On-Time: 150 msec to 700 msec.
Off-Time: 4 seconds to 210 seconds.
Agency Approvals: CE.
