A-900 | Weatherproof enclosure | type 4X | control direct panel mounts in the front of the enclosure. | Dwyer

Weatherproof enclosure, type 4X, control direct panel mounts in the front of the enclosure.

Brand: DwyerSKU: A-900

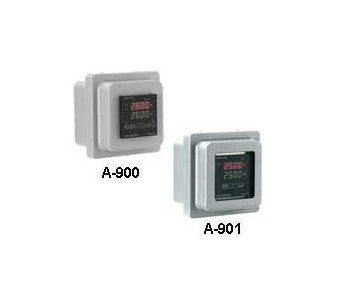

Dwyer | A-900
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A-900

Overview Details for A-900

See catalog product page for full listing

Weatherproof enclosure | type 4X | control direct panel mounts in the front of the enclosure.

Series A-900 & A-901 1/4 DIN Control Enclosure

Weatherproof, Durable, Pre-Cut Mounting Hole

Models A-900 and A-901 are the perfect instrument housing for indoor and outdoor applications. Protects controls from dirt, dust, oil and water. Unit is rated weatherproof type NEMA 4X and has a fully gasketed cover. Standard features include a lockable latch to prevent tampering and flush mounting hardware.

The Model A-900 comes standard with a 1/4 DIN cut out in the front cover. Controller will mount with front face exposed for easy access to the programming buttons. Love and Mercoid controllers feature weatherproof NEMA 4X rated front panels and gaskets enabling the control to be weatherproof protected when installed in the A-900 even though the front face is exposed. Wiring an installed control is easy due to the hinged cover and spacious clearance for the control to swing out with front cover. The lockable latch prevents unauthorized removal of the control from the enclosure.

The Model A-901 comes standard with a clear plastic front window and mounting hardware to install the control inside the box. Controller mounts just behind the window assuring easy viewing. Mounting the control inside the enclosure protects the control face from corrosive atmospheres or from being covered in oil, dirt and dust. The lockable latch prevents unauthorized removal of the control and removes access to the control programming buttons. The mounting hardware is attached to the rear of the enclosure and includes a bracket with a 1/4 DIN cutout and standoffs long enough for Love and Mercoid controls to fit. Control programming buttons are easily accessible by just opening the front cover.

Product Applications

  • Wastewater remote pump stations
  • Outdoor industrial ovens/furnaces/boilers
  • Can be used outdoors with UV stabilized material
  • Simple installation with fiberglass material, which is easily punched or drilled forconduit connections
  • Versatile units are compatible with Love® controls Series 2500, 2600, 4B, 4C, and4G, and Mercoid® Series MPC and MPCJR

Specifications

Series
A-900 & A-901 1/4 DIN Control Enclosure
Category/Type
Process Control
Type
Enclosures
Series
A-900 & A-901 1/4 DIN Control Enclosure
Service
Indoor or outdoor.
Rating
NEMA 1; 2; 3; 3R; 4; 4X; 12; and 13.
Materials
Body: UV stabilized fiberglass reinforced polyester; Snap latch: 304 SS; Hinge: Stainless steel; Mounting feet and screws: 304 SS; Window: UV stabilized polycarbonate; Cover gasket: Neoprene.
Enclosure Rating
NEMA 4X (IP66).
Control Temperature Limits
When using the enclosures with controls that have 10 A relay outputs; the extra heat generation decreases the maximum ambient temperature values that the control can be used at inside the enclosure. Other outputs on our controls are not a concern.
Agency Approvals
UL.
