Documents: SVP-4

Instruction Manual Series SVP Catalog Page More Info

SVP-4 | Proportioning solenoid valve | orifice 0.063" (1.60 mm) | Cv of 0.068 | max. flow 53 SCFH (25 LPM) air | max. flow rate 13.5 GPH (850 cc/m) water. | Dwyer

Proportioning solenoid valve, orifice 0.063" (1.60 mm), Cv of 0.068, max. flow 53 SCFH (25 LPM) air, max. flow rate 13.5 GPH (850 cc/m) water.

Brand: DwyerSKU: SVP-4

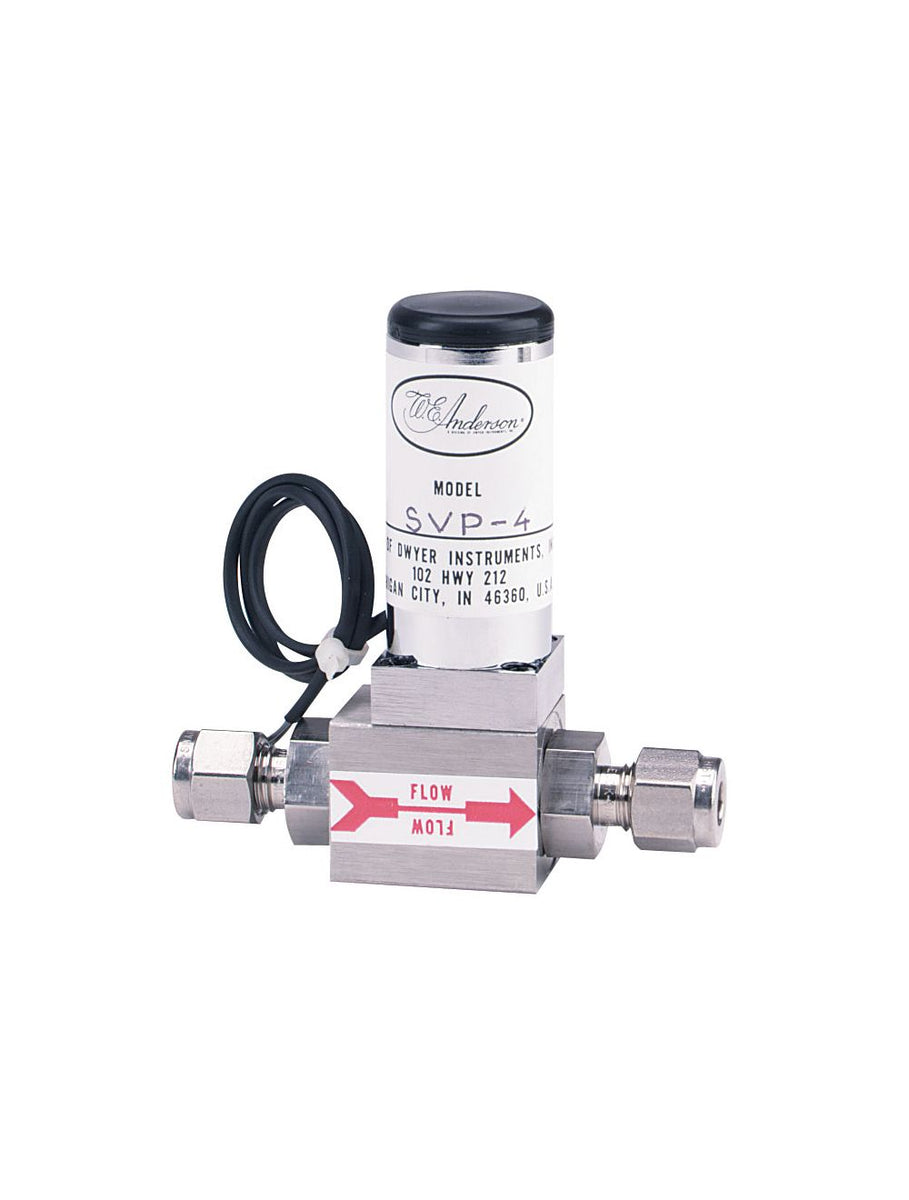

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SVP-4

Jump to: Overview & Specifications Reviews

Overview Details for SVP-4

See catalog product page for full listing

Proportioning solenoid valve | orifice 0.063" (1.60 mm) | Cv of 0.068 | max. flow 53 SCFH (25 LPM) air | max. flow rate 13.5 GPH (850 cc/m) water.

Series SVP Proportioning Solenoid Valve

Low Cost, Stainless Steel Construction, 0-24 VDC Input

The Series SVP Proportioning Solenoid Valve is a low cost, uniquely designed solenoid valve which controls or regulates flow in proportion to a variable voltage input. While most solenoid valves simply provide on/off service, this unit adds a totally new dimension to solenoid valve performance. Reacting to a 0-24 VDC input signal, the valve opens in proportion to the voltage applied, delivering just the right amount of flow needed. Compatible with a wide range of gases and liquids, this unit provides the solution to even the most demanding applications like process control, chemical mixing, high tech manufacturing and laboratory testing. Another quality feature of this valve is its tight shut-off (NC) when de-energized.

Specifications

Series: SVP Proportioning Solenoid Valve
Category/Type: Valves
Type: Valves
Valve Type: Solenoid
Series: SVP Proportioning Solenoid Valve
Service: Compatible gases.
End Connections: 1/4" compression fitting.
Pressure Limits: 500 psig (34.45 bar).
Wetted Materials: 316 and 416 stainless steel; FKM o-rings.
Temperature Limits: Process: -40 to 174°F (-40 to 79°C); Ambient: -40 to 130°F (-40 to 54°C).
Type of Operation: Normally closed; valve will close when de-energized.
Voltage Input: 0-24 VDC.
Maximum Operating Current: 400 mA.
Electrical Connections: (M) spade type.
Maximum Differential Pressure: 50 psid (3.45 bar).
Weight: 12 oz (340 g).
