SSR-210 | Solid state relay | range 24-260 VAC | max. load 10 amp. | Dwyer
Solid state relay, range 24-260 VAC, max. load 10 amp.

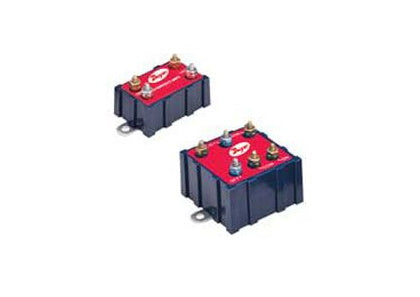

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SSR-210
Documents and manuals
Dwyer SSR-210 Documents
Overview
Details for SSR-210
See catalog product page for full listing
Solid state relay | range 24-260 VAC | max. load 10 amp.
Series SSR Solid State Relay
5 or 10 Amp, SPST Switch Operation
Series SSR Solid State Relays amplify the current handling capability of a variety of sensors for controlling higher power loads. The relays are compact, totally encapsulated and impervious to shock or vibration. Units feature SPST, normally open switch operation and can control loads up to 5A or 10A depending on model. Models SSR-312 and SSR-324 are specifically designed to provide low current "start-stop" or "on-off" switching for industrial motor, liquid level, and other control systems. Units hold operational state up to a 1/2 second during momentary power loss to cut nuisance shutdowns.
Specifications
- Series
- SSR Solid State Relay
- Category/Type
- Process Control
- Type
- Relays
- Series
- SSR Solid State Relay
- Operating and Load Voltage Range
- SSR-25 and SSR-210: 24 to 260 VAC; SSR-310: 100 to 130 VAC; SSR-324: 200 to 250 VAC.
- Voltage Loss
- 2 VAC.
- Maximum Sensor Current
- 20 mA.
- Switching Operation
- SPST normally open.
- Temperature Limits
- 0 to 120°F (-18 to 49°C).
- Leakage Current
- Thru load terminal: 12 mA @ 240 VAC.
- Max. Output Leakage Current
- 6 mA @ 120 VAC.
- Housing
- Polysulfone.
- Weight
- 9 oz (255 g).
