SF11 | Sight flow transmitter | clear polycarbonate cover. | Dwyer

Sight flow transmitter, clear polycarbonate cover.

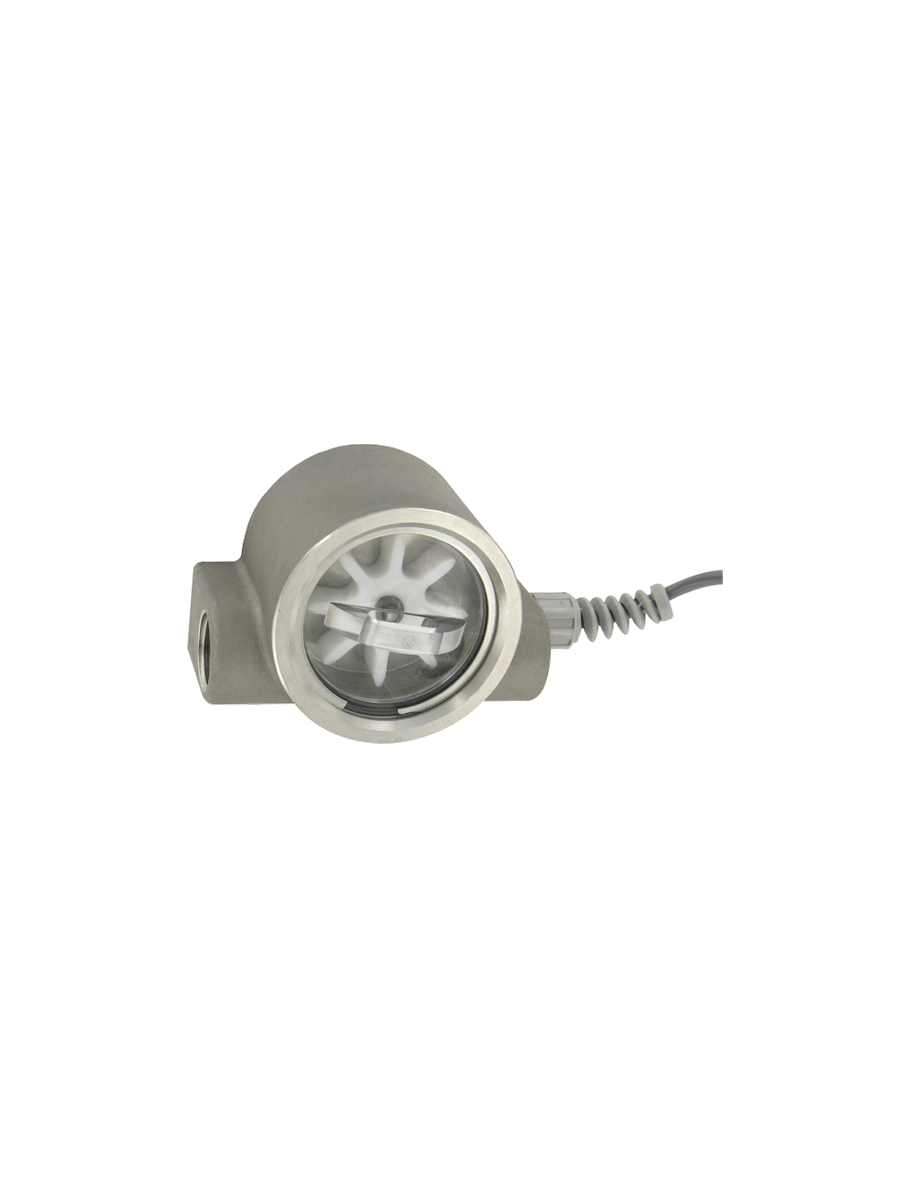

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SF11

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SF11 Documents

Instruction Manual Series SF Catalog Page More Info

Overview

Details for SF11

See catalog product page for full listing

Sight flow transmitter | clear polycarbonate cover.

Series SF Sight Flow Transmitter

±2% FS Accuracy, 4 to 20 mA Output, Pressure up to 500 psig (34 bar)

The Series SF Sight Flow Transmitter is a Series of sight indicators which can display flow or contents of pipelines and provide an analog 4 to 20 mA signal proportional to the flow rate. It is available with a 316 SS or clear polycarbonate cover.

Calibration Option available under Accessories.

Product Applications

Cooling and lubrication circuits
HVAC systems
Aggressive chemical metering
Batching systems

Integrates tangential turbine technology with hermetically sealed circuitry to provideaccurate flow measurement and control in the harshest environments
2-wire loop-powered design transmits a 4 to 20 mA signal proportional to flow rate forremote flow monitoring
Clear polycarbonate viewing cover option for visible indication of flow
316 SS cover offers added protection with pressure limit up to 500 psig (34 bar)
LED power indication, adjustable zero and span, polarity protection and over currentlimiting
Accurately measures flow in both directions and can be mounted in any orientation

Specifications

Series: SF Sight Flow Transmitter
Category/Type: Flow
Type: Flow Transmitters
Series: SF Sight Flow Transmitter
Service: Compatible liquids.
Wetted Materials: 316 SS shaft and case; Iglide® bearings; Buna-N seal and acetal copolymer; (polycarbonate cover on Model SF11).
Flow Range: 0.5 to 15 GPM (2 to 60 LPM).
Accuracy: ±2% FS.
Repeatability: 0.5% FS.
Temperature Limits: 20 to 225°F (-7 to 107°C).
Pressure Limits: 500 psig (34 bar) Model SF10; 200 psig (14 bar) Model SF11.
Response Time: 2 s to 90% (step change in flow rate).
Supply Voltage: 12 to 35 VDC.
Output: 4 to 20 mA.
Loop Resistance: 1150 Ω max.
Process Connection: 1/2" female NPT.
Electrical Connection: Wire leads; 22 AWG x 9' (2.7 m).
Maximum Particle Size: 100 µm.
Agency Approvals: CE.
