SCT10-100 | Current transducer | split core | 4-20 mA output | range 30/60/120A | Dwyer

Current transducer, split core, 4-20 mA output, range 30/60/120A

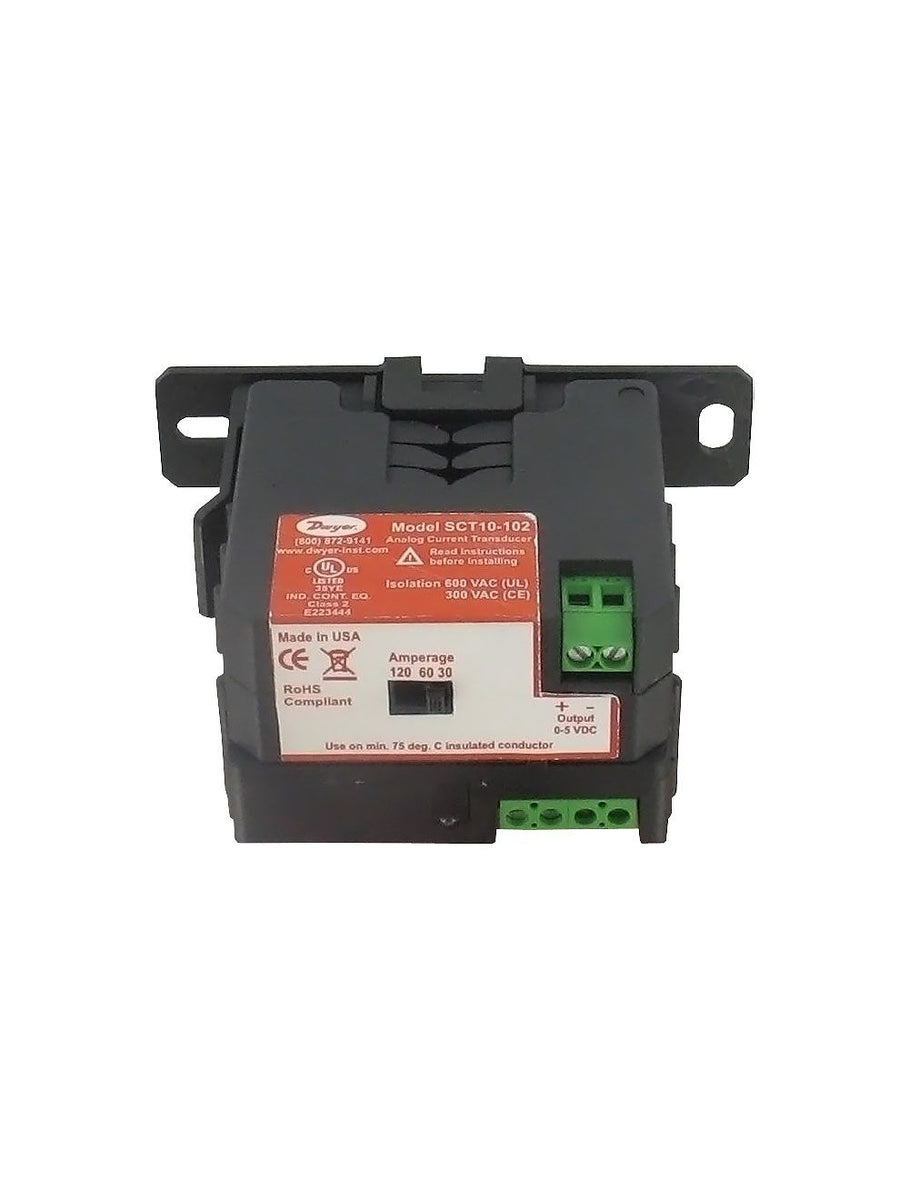

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to SCT10-100

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer SCT10-100 Documents

Instruction Manual Series SCT Catalog Page More Info

Overview

Details for SCT10-100

See catalog product page for full listing

Current transducer | split core | 4-20 mA output | range 30/60/120A

Series SCT Current Transformer

Optional Auxiliary, Relay Output, Split Core

The Series SCT Current Transformers continuously measure the current consumption of pumps, fans, boilers, solar panels and chillers for use in energy monitoring. Current or voltage outputs can be scaled using a slider switch to select between three factory set ranges. Split core configuration allows the current transformer to be installed on new and existing installations. Snap-on mounting bracket allows for quick installation of replacement transformers. An optional 10 A command relay can snap onto the current switch, which eliminates the need to mount an additional relay.

Specifications

Series: SCT Current Transformer
Category/Type: Process Control
Type: Current Transformers / Switches
Series: SCT Current Transformer
Amperage Range: 30/60/120 A or 20/100/150 A (depending on model).
Continuous Operating Current: 120 A or 150 A (depending on model).
Output: 4 to 20 mA; 0 to 5 VDC; 0 to 10 VDC (depending on model). Optionalrelay NO SPST; 10 A @ 260 VAC; 5 A @ 30 VDC.
Power Requirements: Self-powered or 24 VDC (depending on model).
Accuracy: ±2% from 10 to 100% of selected range.
Temperature Limits: 5 to 140°F (-15 to 60°C).
Humidity Limits: 0 to 95% non-condensing.
Response Time: 2 s.
Isolation Voltage: 600 VAC RMS.
Frequency: 50/60 Hz.
Enclosure Rating: UL; V-O flammability rated; type 66 nylon.
Agency Approvals: CE; RoHS; cUL; UL.
