SBSV-S6F2 | 2-way 316SS solenoid valve | 1" | 7.28-188.5 psi | FKM seal | 220 VAC | Dwyer

2-way 316SS solenoid valve, 1", 7.28-188.5 psi, FKM seal, 220 VAC

Brand: DwyerSKU: SBSV-S6F2
Dwyer | SBSV-S6F2

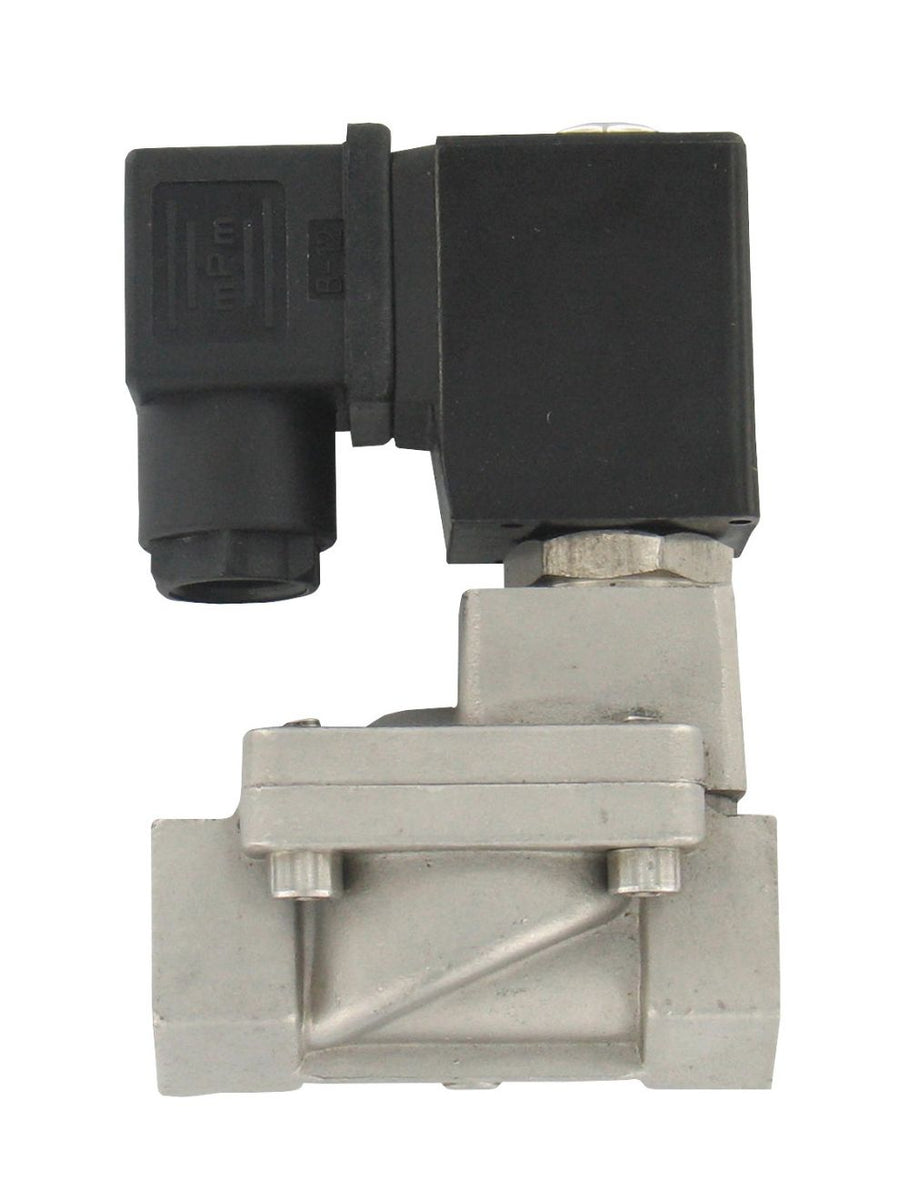

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SBSV-S6F2

Overview Details for SBSV-S6F2

See catalog product page for full listing

2-way 316SS solenoid valve | 1" | 7.28-188.5 psi | FKM seal | 220 VAC

Series SBSV-S SS Solenoid Valves – 2-Way Guided NC

Compact Design, Immune to Mounting Orientation

The Series SBSV-S Solenoid Valve is compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in SS with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and non-corrosive coolants. The Series SBSVS valves come assembled with a fluoroelastomer seal, having a maximum process temperature of 248°F (120°C). The series offers a wide range of valve sizes and flow ranges, with connection sizes from 1/8" to 2" NPT and orifices from 3 mm to 50 mm.

Product Applications

  • Wide variety of applications, suitable air, gas, water and other liquids
  • Can be oriented in any position
  • Compact design
  • Field replaceable coils

Specifications

Series
SBSV-S SS Solenoid Valves – 2-Way Guided NC
Category/Type
Valves
Type
Valves
Valve Type
Solenoid
Series
SBSV-S SS Solenoid Valves – 2-Way Guided NC
Service
Compatible gases and liquids.
Line Size
1/8 to 2" NPT.
End Connections
Female NPT.
Operating Pressure
>1/8 to 1/4": 0 psi (0 bar) to 188.5 psi (13 bar);3/8 to 2": 7.3 psi (0.5 bar) to 188.5 psi (13 bar).
Pressure Limit
246.6 psi (17 bar).
Wetted Material
Body: 316 SS; Spring; 304 SS; Seal: Fluoroelastomer.
Temperature Limits
>Process: 176°F (80°C);Ambient: 32 to 149°F (0 to 65°C).
Power Requirements
Standard: 110 VAC; Optional: 220 VAC; 24 VDC; 24 VAC consult factory. See Series SRC Solenoid Coils.
Power Consumption
See table on catalog page.
Enclosure Rating
NEMA 13 (IP54).
Electrical Connection
DIN connection.
Other Materials
Nylon.
Mounting Orientation
Any position; best if solenoid vertically abovevalve.
Weight
See table on catalog page.
Type of Operation
NC.
Agency Approvals
CE.
