RSMC-A-004 | Critical room status monitor | range 0-1.0" w.c. | ± 0.25% accuracy | Dwyer

Critical room status monitor, range 0-1.0" w.c., ± 0.25% accuracy

Brand: DwyerSKU: RSMC-A-004

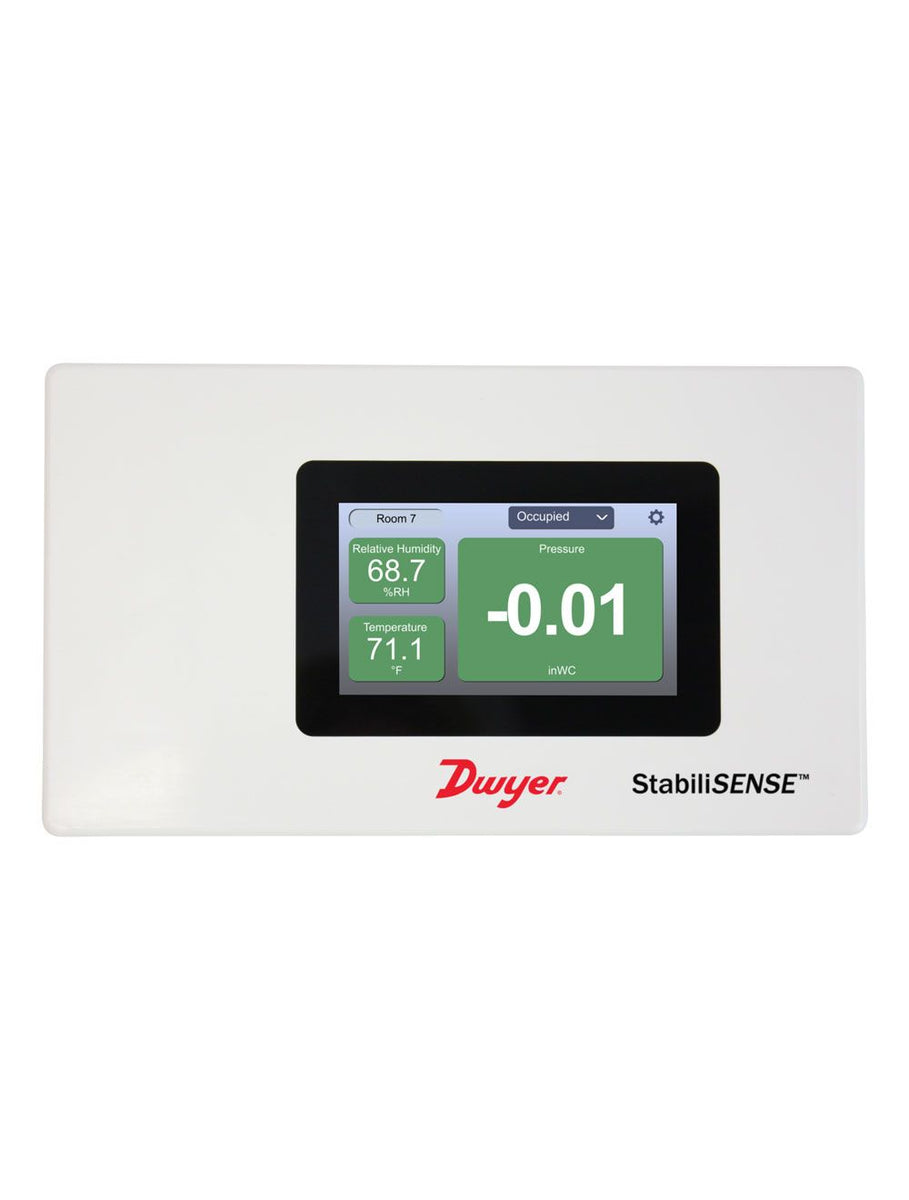

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to RSMC-A-004

Jump to: Overview & Specifications Reviews

Overview Details for RSMC-A-004

See catalog product page for full listing

Critical room status monitor | range 0-1.0" w.c. | ± 0.25% accuracy

Series RSMC StabiliSENSE™ Critical Room Status Monitor

Touchscreen LCD, Monitors Multiple Parameters

The Series RSMC StabiliSENSE™ Critical Room Status Monitor is designed for critical low differential pressure applications that require stringent pressure monitoring and alarming. It can be configured to monitor positive or negative pressure in clean rooms, hospital isolation rooms, school nurses offices, laboratories, and vivariums. The RSMC is a complete system with a touchscreen graphical user interface which enables access to pressure, humidity, temperature, air change, security, door status, calibration, and alarm setup. The graphical display color changes allow a clear determination of when the parameters are operating within the acceptable range (green), caution range (yellow), or have gone outside the acceptable operating range (red). The RSMC StabiliSENSE™ critical room status monitor comes standard with BACnet MS/TP and Modbus® RTU communications.

Each RSMC includes a factory calibration certificate.

Product Applications

Hospital isolation rooms
Pharmaceutical facilities
Dental offices
School nurse offices
Semiconductor manufacturing facilities

Long-term stable pressure measurements
User-configurable graphical interface
Monitors up to 3 rooms with a single
Displays up to 4 parameters including pressure, relative humidity, temperature, air change, and/or door status
Allows for flush installation in walls with space constraints with the shallow mounting depth of 1.1" (27.5 mm)
Full color 4.3" touchscreen LCD incorporate color status indication: green for good, yellow for warning, and red for alarm
Easy-to-clean optional brushed stainless steel bezel
BACnet MS/TP and Modbus® RTU communications
Includes RSMC, junction box, factory calibration certificate, and USB-C/USB-A flashdrive

Specifications

Series: RSMC StabiliSENSE™ Critical Room Status Monitor
Category/Type: Pressure
Type: Room Status Monitors
Series: RSMC StabiliSENSE™ Critical Room Status Monitor
Service: Air.
Measurement Technology: Capacitance cell pressure sensor.
Wetted Materials: Front: PMMA window with IP65 rating; Back housing: Fire-proof ABS+PC UL 94 V-0.
Pressure Limits: 1.5 psig.
Accuracy: ±0.25% RSS (includes non-linearity: ±0.24% BFSL; hysteresis: ±0.05%and non-repeatability: ±0.05%); or ±0.5% RSS (includes non-linearity: ±0.49%BFSL; hysteresis: ±0.05% and non-repeatability: ±0.05%).
Process Connection: Barbed; fits 1/8" and 3/16" (3 mm and 5 mm) ID rubber or vinyl tubing.
Inputs: Two (2) user-selectable 4-20 mA; 0-5 VDC; or 0-10 VDC; USB type C usedfor cloning programming; One (1) digital input for door status.
Outputs: One (1) digital output (DO) rated 5 A @ 30 VDC; One (1) 4-20 mAcorresponding to pressure.
Ambient Temperature Limits: 32 to 122°F (0 to 50°C).
Power Requirements: 24 VAC/VDC.
Selectable Pressure Units: Pa; kPa; cm w.c.; mm w.c.; and in w.c.
Temperature Units: °F and °C.
Zero and Span Adjustments: Adjustable via touchscreen.
Power Consumption: 3.6 W @ 24 VDC.
Electrical Connection: Removable terminal block.
Display: 4.3" (10.9 cm) color TFT LCD; dimmable; 480 x 272 resolution.
Communications: Modbus® RTU; BACnet MS/TP.
Audible Alarm: 69.1 dB 10 cm from display.
Weight: 1.05 lb (0.476 kg).
Approvals: BTL; CE.
