DHC-008 | Differential pressure controller | range 5.0 in w.c. | Dwyer
Differential pressure controller, range 5.0 in w.c.
Documents and manuals
Dwyer DHC-008 Documents
Overview
Details for DHC-008
Differential pressure controller | range 5.0 in w.c.

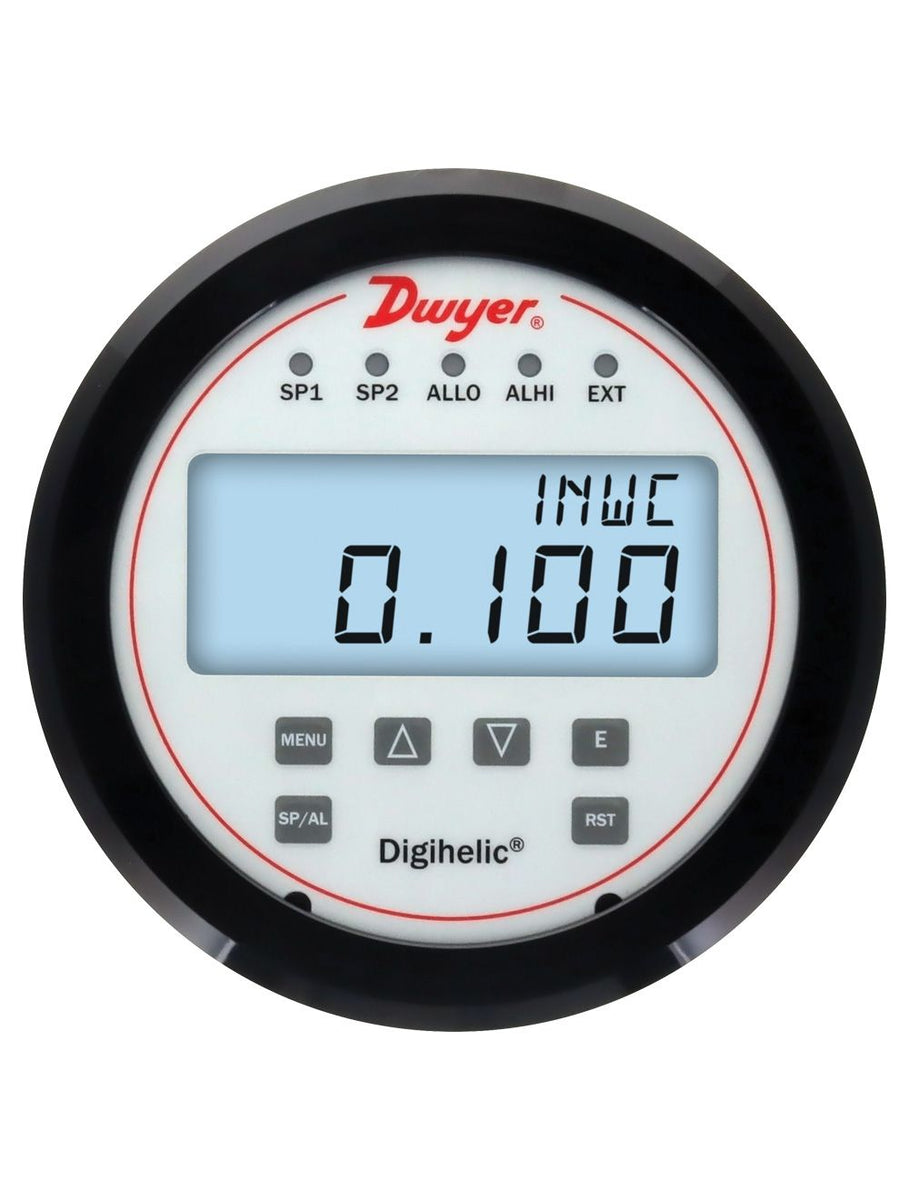

Series DHC Digihelic® Differential Pressure Controller
The Series DHC Digihelic® Differential Pressure Controller is a 3-in-1 instrument possessing a digital display gage, control relay switches, and a transmitter with both current and voltage outputs. Combining these 3 features allows the reduction of several instruments with one product, saving inventory, installation time, and cost. The Series DHC Digihelic® differential pressure controller is the ideal instrument for pressure, velocity, and volumetric flow applications reading in several commonly used engineering units with optional unidirectional or bidirectional ranges. These units achieve a 1.5% or better accuracy on extremely low ranges, and 0.5% accuracy for ranges at or above 1 in w.c. Calibration can be performed in the field, making maintaining its accuracy more manageable. Additionally, the Series DHC Digihelic® differential pressure controller includes 2 SPDT control relays with adjustable deadbands. Programming the unit is simple using the built-in menu. With scalable 4-20 mA, selectable voltage process outputs, and selectable Modbus® or BACnet communication, this controller can easily fit into your application.
NIST CALIBRATION available in Product Configurator.Product Applications
- SCFM duct flow
- Filter status
- Duct or building static pressure
- Damper and fan control
- One instrument saves inventory, installation time, and money with its measurement versatility and innovative 3-in-1 design
- Measurement precision via full-scale accuracy of 1.5% or better on extremely low ranges, and 0.5% for ranges at or above 1 in w.c.
- Safe and secure with security menu programming
- Simplified field upgrade to DHC pressure controller with optional stainless steel bezel
Specifications
- Series
- DHC Digihelic® Differential Pressure Controller
- Category/Type
- Pressure
- Type
- Differential Pressure
- Series
- DHC Digihelic® Differential Pressure Controller
- Service
- Air and non-combustible; compatible gases.
- Wetted Materials
- Consult factory.
- Housing Material
- Polycarbonate.
- Accuracy
- ±0.5% FSO for all ranges; except 0.5 in w.c. @ ±1% FSO; and ranges at or below ±0.25 in w.c. @ ±1.5% FSO.
- Stability
- < ±1% / year FSO.
- Pressure Limits
- Ranges > 1 in w.c.: 6 psi max operation; 6 psi burst; Ranges ≤ 1 in w.c.: 3.6 psi max operation; 6 psi burst.
- Temperature Limits
- -4 to 158°F (-20 to 70°C).
- Thermal Effects
- .02% FS / °F (.036% FS / °C).
- Power Requirements
- 12-28 VDC or 12-28 VAC 50 to 400 Hz.
- Power Consumption
- 3 VA max.
- Output Signal
- 4-20 mA (4-wire); 0-10 V; 0-5 V; 1-5 V; and 2-10 V (4-wire).
- Communication
- BACnet MS/TP or Modbus® RTU.
- Supported Baud Rate
- 9600; 19200; 38400; 57600; 76800; 115200.
- Device Load
- 1/8 unit load.
- Zero and Span Adjustments
- Accessible via menus.
- Response Time
- 400 ms (damping set to 0).
- Display
- Backlit LCD display; LED setpoint indicators.
- Electrical Connections
- 15 pin male high density D-sub connection. 18" (46 cm) cable with 15 conductors included.
- Process Connections
- 1/8" female NPT ports on side and back.
- Enclosure Rating
- NEMA 4X (IP66).
- Mounting Orientation
- Not position sensitive.
- Size
- 5" OD (127 mm) x 1.9" (48 mm) deep.
- Weight
- 8.8 oz (250 g).
- Compliance
- BTL; CE.
- SWITCH SPECIFICATIONS
- Switch Type
- 2 SPDT relays.
- Electrical Rating
- 1 A @ 30 VAC/VDC.
- Set Point Adjustment
- Accessible via menus.
