DHII-008 | Differential pressure controller | selectable engineering units: 25.00" w.c. | 2.083 ft w.c. | 635.0 mm w.c. | 63.50 cm w.c. | .9032 psi | 1.839" Hg | 46.71 mm Hg | 62.27 mbar | 6227 Pa | 6.227 kPa | 62.27 hPa | 14.45 oz/in². | Dwyer

Differential pressure controller, selectable engineering units: 25.00" w.c., 2.083 ft w.c., 635.0 mm w.c., 63.50 cm w.c., .9032 psi, 1.839" Hg, 46.71 mm Hg, 62.27 mbar, 6227 Pa, 6.227 kPa, 62.27 hPa, 14.45 oz/in².

Brand: DwyerSKU: DHII-008

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to DHII-008

Jump to: Overview & Specifications Reviews

Overview Details for DHII-008

See catalog product page for full listing

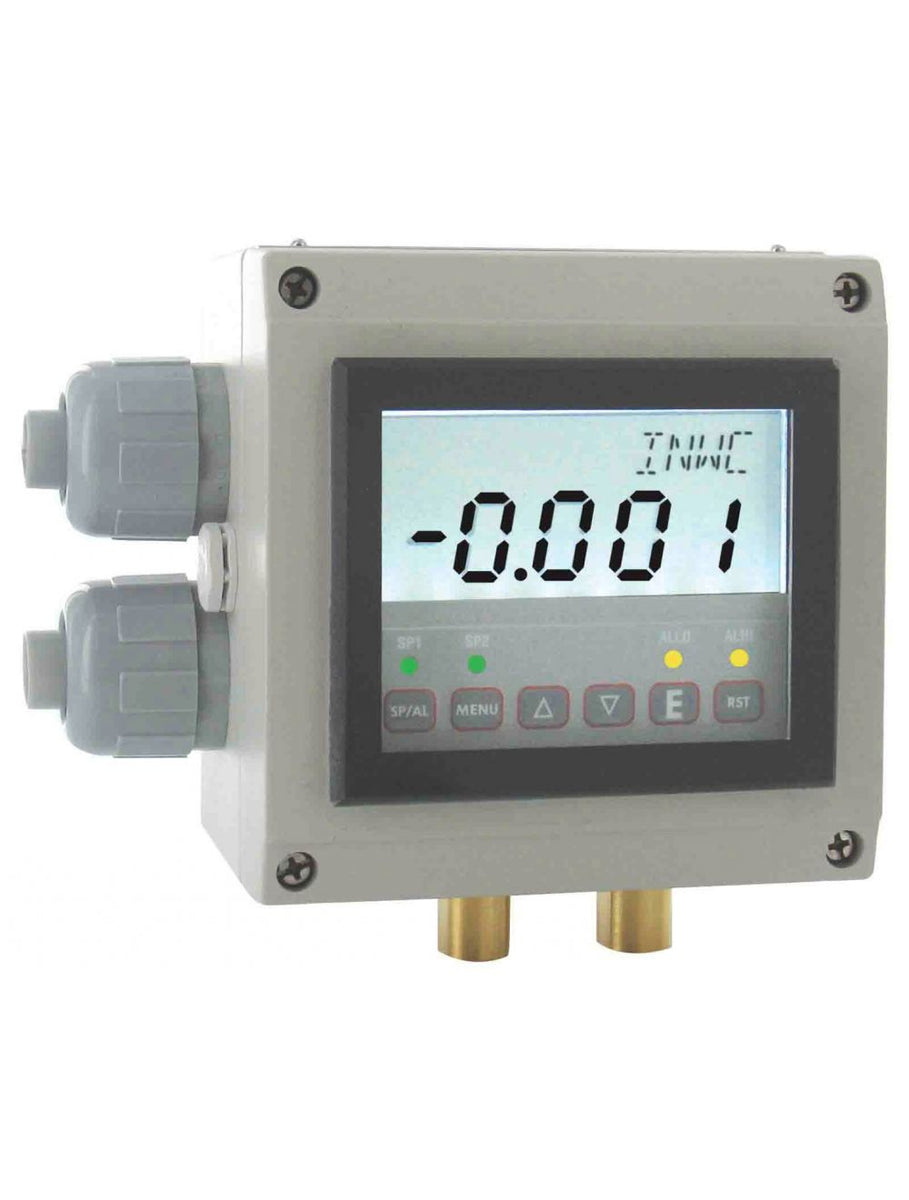

Series DHII Digihelic® Differential Pressure Controller

NEMA 4 (IP66) Housing with Large, Bright LCD, Square Root Output for Flow

The Series DHII Digihelic® Differential Pressure Controller takes all the features of the standard Digihelic® Pressure Controller and packages them in a robust NEMA 4 (IP66) housing.

The Digihelic® II Pressure Controller combines the 2 SPDT control relays, 4-20 mA process output and Modbus® communications with a large, brightly backlit 4 digit LCD display that can easily be seen from long distances. The electrical wiring has also been enhanced in the DHII with its detachable terminal blocks. The removable terminals allow the install to easily wire the terminal block outside the housing and then attach to the circuit board, reducing wiring difficulties and installation time on the process.

The Digihelic® II Differential Pressure Control in the NEMA 4 (IP66) enclosure enables this product to be the perfect choice when mounting pressure controls outdoors in such applications as rooftop air handlers. This housing also makes it the ideal solution for surface mounting in clean rooms or facilities where water or a cleaning solution is utilized in maintaining plant cleanliness.

NIST CALIBRATION available in Product Configurator.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Air Handlers
Clean Rooms

NEMA 4 housing enables a range of uses both outdoors or indoors where water is present
Large backlight LCD display provides local reading from a distance
Detachable terminal blocks reduce wiring difficulties saving installation time

Specifications

Series: DHII Digihelic® Differential Pressure Controller
Category/Type: Pressure
Type: Differential Pressure
Series: DHII Digihelic® Differential Pressure Controller
Service: Air and non-combustible;compatible gases.
Wetted Materials: Consult factory.
Housing Material: Aluminum; glass.
Accuracy: ±0.5% at 77°F (25°C)including hysteresis andrepeatability (after 1 hour warmup).
Stability: < ±1% per year.
Pressure Limits: Ranges ≤ 2.5 in w.c. = 2 psi; 5": 5 psi; 10": 5 psi;25": 5 psi; 50": 5 psi; 100": 9 psi.
Temperature Limits: 32 to 140°F (0 to 60°C).
Compensated Temperature Limits: 32 to 140°F (0 to 60°C).
Thermal Effects: 0.020%/°F (0.036/°C) from 77°F (25°C).
Power Requirements: High voltage power = 100 to 240VAC; 50 to 400 Hz or 132 to 240VDC; Low voltage power = 24VDC ±20%.
Power Consumption: Low voltage power = 24 VDC -130 mA max; High voltage power= 100 to 240 VAC; 132 to 240VDC - 7 VA max.
Output Signal: 4-20 mA DC into900 Ω max.
Zero & Span Adjustments: Accessible via menus.
Response Time: 250 ms (dampening set to 1).
Display: 4 digit backlit LCD 0.6"height. LED indicators for set pointand alarm status.
Electrical Connections: Euro type removable terminal blockswith watertight conduit fittings for1/2" watertight conduit.
Process Connections: 1/8" female NPT.
Enclosure Rating: Designed to meet NEMA 4 (IP66).
Mounting Orientation: Mount unit in horizontal plane.
Weight: 2 lb 10 oz (1.19 kg).
Serial Communications: Modbus® RTU; RS485; 9600 Baud.
Agency Approvals: CE; UL.
: SWITCH SPECIFICATIONS
Switch Type: 2 SPDT relays.
Electrical Rating: 8 amps at 240 VAC resistive.
Set Point Adjustment: Adjustable via keypad on face.
