PV13 | Solenoid pilot valve | 24 VAC | 1-3/4" SAV actuator dia. | Dwyer

Solenoid pilot valve, 24 VAC, 1-3/4" SAV actuator dia.

Brand: DwyerSKU: PV13
Dwyer | PV13

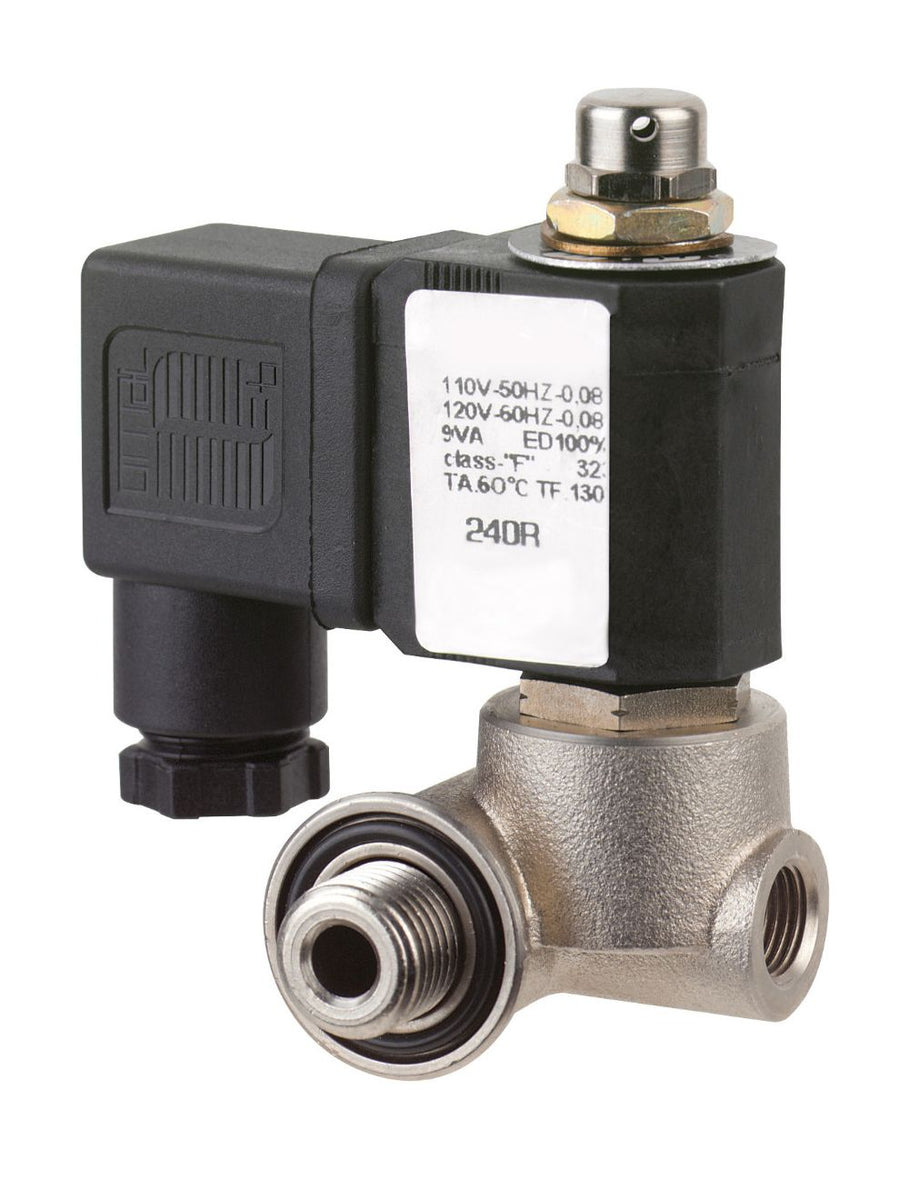

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to PV13

Overview Details for PV13

See catalog product page for full listing

Solenoid pilot valve | 24 VAC | 1-3/4" SAV actuator dia.

Series PV Solenoid Pilot Valve

Low Cost, Compact Design, For Use with SAV Angle Seat Valves

The Series PV three-way normally closed electro-pneumatic solenoid pilot valve can be direct mounted to operate the Series SAV Angle Seat Valve actuators. When the solenoid valve receives the electric input signal, it switches the pneumatic supply pressure to the actuator, which moves the valve from the closed to open position, or reversely for normally open valves. When the input to the solenoid valve stops, the pneumatic supply pressure is again blocked, and the valve returns to the normal position. Suitable for use with air or other inert gases, the valve is supplied with a DIN connector, and is fitted with a manual override. Water can also be used as a pilot media provided that a suitable drain line is attached to the exhaust outlet. Select the proper model according to the SAV valve actuator diameter and power requirements.

California Residents:  Click Here for Proposition 65 WARNING.

Specifications

Series
PV Solenoid Pilot Valve
Category/Type
Valves
Type
Valves
Valve Type
Solenoid
Series
PV Solenoid Pilot Valve
Pilot Media
Air; water; or inert gases.
Power Requirements
See Catalog page.
Wetted Materials
Body: Niploy coated brass; Seal: FKM.
Maximum Supply Pressure
150 psig (10.3 bar).
Temperature Limits
14 to 140°F (-10 to 60°C).
Actuator Connection
PV1-: 1/8" BSP; PV2-; PV3-: 1/4" BSP.
Pilot Media Connection
1/8" NPT.
Coil Consumption
PV-1; PV2-: AC: 9 A (res.); 14 A (ind.); DC: 6 A. PV-3: AC: 15 A (res.); 30 A (ind.); DC: 10 A.
Mounting
Banjo connection.
Enclosure Rating
IP65 (with DIN connector).
Standard Features
Manual override; DIN connector.
