Portable ultrasonic flowmeter Type A/B | 0.5 to 78" (13 to 2000 mm) pipe size | transducers with data logger.

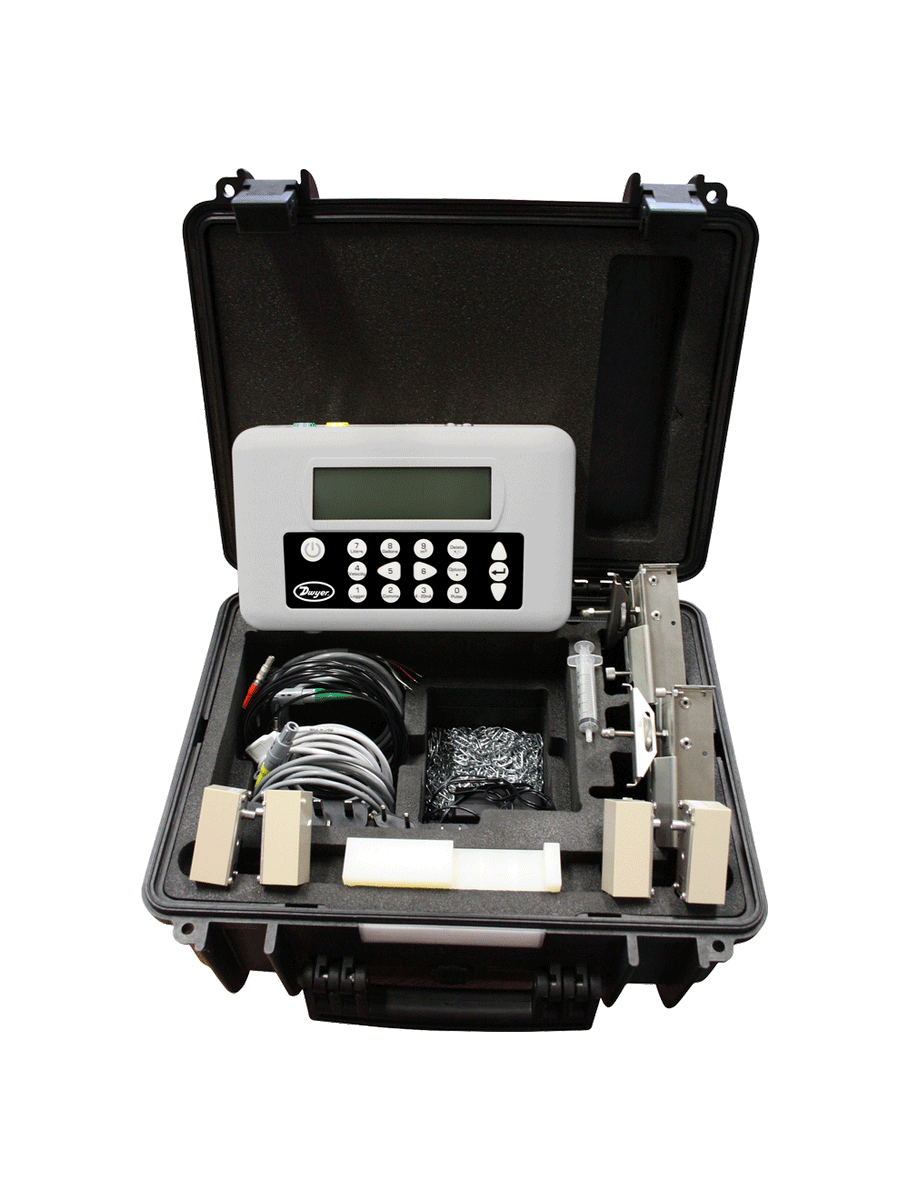

Series PUF Portable Ultrasonic Flowmeter Kit

Portable, Non-Invasive and Data Logging Capability

The Series PUF Portable Ultrasonic Flowmeter Kit utilizes the transit-timedifference for measuring flow rates in pipes non-invasively. It is a compact and lightweightinstrument incorporating the latest electronics and signal processing technologies, realizinghigh performance and easy operation. This device is capable of 20 hours continuousoperation with its built-in battery. The PUF comes with an IP67 rated carrying case withmolded foam inserts to hold and protect all equipment against dust and water. The screenoffers easy to read text with a convenient backlight for visual comfort. The efficient layoutof the function keys add to this unit's easy to use programming. The unit comes with RS232and USB connections to allow for easy connection to any personal computer or printer.

PRINCIPLES OF OPERATION
Two sensors are placed on the exterior of the pipe, and each transmits an ultrasonicpulse through the pipe and fluid to the other. The velocity of the liquid flowing throughthe pipes causes the pulse to accelerate or decelerate. The difference in the transittimes of the two pulses is used to calculate the flow rate. The use of transit timeallows the flowmeter to be unaffected by pressure or temperature changes.

Calibration Option available under Accessories.

For non-data logging version see Series PUB.

California Residents:  Click Here for Proposition 65 WARNING.

Product Applications

  • Treated Water
  • River Water
  • Sea Water
  • Potable Water
  • Demineralized Water
  • Glycol/water mix
  • Hydraulic System
  • Diesel Oil
  • Kit Includes:
  • Converter
  • Set of Transducers (Both Sets for Model PUF-1001)
  • Transducer Holders
  • Set Transducer Cables (6.56 ft (2 m))
  • USB, RS232, 4 to 20 mA Communication Cables
  • 12 VDC Power Supply
  • Ultrasonic Coupling Grease
  • Set of Chains
  • Ruled Guide Rail
  • Test Block
  • Carrying Case

Specifications

Series
PUF Portable Ultrasonic Flowmeter Kit
Category/Type
Flow
Type
Flow Transmitters
Series
PUF Portable Ultrasonic Flowmeter Kit
Service
Homogeneous liquids that do not contain air bubbles capable of ultrasonicwave propagation.
Inputs
Lemo connector cable from sensors.
Range
0.33 to 65.62 ft/s (0.1 to 20 m/s).
Display
240 x 64 pixel graphic display; high contrast black on white with backlight;Languages: English; French; German; Swedish; Italian; Spanish; Portuguese;Russian; Norwegian; and Dutch; 5.2" W x 1.5" H (132.1 x 38.1 mm).
Accuracy
± 0.5 to 2% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and Pipe ID > 3 in(75 mm).± 3% of flow reading for flow rate > 0.66 ft/s (0.2 m/s) and Pipe ID in range 0.5to 3 in (13 to 75 mm).± 6% of flow reading for flow rate < 0.66 ft/s (0.2 m/s).
Power Requirements
9 to 24 VDC; (1) 5-Cell NiMH battery; internal; factory replaceable(continuous operation time: 20 hours with back light and output off); (recharging time: 6.5 hours; power adapter used).
Power Consumption
10.5 W.
Power Adapter
110/240 VAC adapter; UK;US; European adapters included.
Temperature Limits
-4 to 275°F (-20 to 135°C).
Outputs
Analog: 1 opto-isolated output: 4 to 20 mA; 0 to 16 mA or 0 to 20 mA (selectable); Error current: 0 to 26 mA (selectable); Load resistance: 620 O max; Pulse: 1 opto-isolated MOSFET relay; 150 mA max; 500 pps max; 200 Hz max.
Serial Communications
USB; RS-232.
Enclosure Rating
Transducers: IP51; Carrying Case: IP67; Converter: IP54.
Materials
Flame retardant injection molded ABS plastic.
Repeatability
±0.5 % of measured value or ±0.066 ft/s (0.02 m/s).
Electrical Connections
Multi-pin Lemo plugs.
Turbidity
<3% by volume of particulate content.
Permissible Air Content
<3% by volume.
Response Time
<500 ms.
Weight
Unit without accessories: 2.30 lb (1.06 kg); Unit with accessories in carrying case: 14.40 lb (6.52 kg).
Agency Approvals
CE.
ADDITIONAL SPECIFICATIONS
Applicable Pipe Material
Carbon steel; SS; copper; UPVC/PVDF; concrete;galvanized steel; mild steel; glass; brass.
Applicable Pipe Lining
Rubber; glass; concrete; epoxy; steel; other*.
Pipe Wall Thickness
0.04 to 3" (1 to 75 mm).
Pipe Lining Thickness
< 1" (< 25 mm).
*Selectable option for special material with known propagation rate of the liningmaterial.
