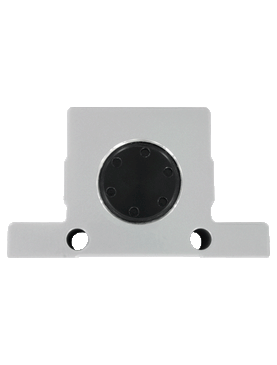

PTV-5 | Pneumatic turbine vibrator. | Dwyer

Pneumatic turbine vibrator.

Brand: DwyerSKU: PTV-5

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PTV-5

Jump to: Overview & Specifications Reviews

Overview Details for PTV-5

See catalog product page for full listing

Pneumatic turbine vibrator.

Series PTV Pneumatic Turbine Vibrator

Low Noise, High Vibration Frequency

Series PTV Pneumatic Turbine Vibrators are the best choice of high vibration frequency types for a low noise environment. It is usually installed on a vibrating separator, conveyor, automatic arrangement machine, packing machine, or filling machine. The vibration is produced by centrifugal force which arises from the imbalance of movement when compressed air impacts the tangent of the turbine to make it move. The operation noise is low because of ball bearing supports on the running turbine.

Aluminum body allows low noise and high vibration frequency.
Small in size and light-weight.
Sudden power on/off is allowed.
Frequency and amplitude of vibration can be adjusted as required.

Specifications

Series: PTV Pneumatic Turbine Vibrator
Category/Type: Level
Type: Bin Vibrators
Series: PTV Pneumatic Turbine Vibrator
Temperature Limit:: 212ºF (100ºC).
Noise Level: 60-75 dBA.
Supply Pressure: 29 to 87 psi (2 to 6 bar).
Air Consumption: See chart on Catalog Page.
Air Connection: 1/8" BSPT female with 1/4" OD push to connect adapter on PTV-1. 1/4" BSPT female with 1/4" OD push to connect adapter on PTV-2; PTV-3; PTV-4; and PTV-5. 3/8" BSPT female with 3/8" OD push to connect adapter on PTV-6. Also includes muffler for exhaust port.
Housing Material: Aluminum.
