P8-13 | High pressure brass flow switch | actuation set point 1.0 GPM (3.79 LPM). | Dwyer

High pressure brass flow switch, actuation set point 1.0 GPM (3.79 LPM).

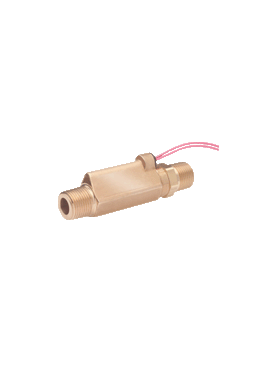

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to P8-13

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer P8-13 Documents

P8 Series P8 Catalog Page More Info

Overview

Details for P8-13

See catalog product page for full listing

High pressure brass flow switch | actuation set point 1.0 GPM (3.79 LPM).

Series P8 High Pressure Brass Flow Switch

Up to 1500 psi, Fixed Setpoint, Up to 2.0 GPM, Rugged Brass Body

The Series P8 High Pressure Brass Flow Switches are ideal for high in-line pressures. Set points range from 0.25 to 2.0 GPM for liquid flow.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Industrial cleaning equipment
High pressure lubrication systems

Integrates a one-piece magnetic PPS composite piston to handle pressure up to1500 psi
Less susceptible to clogging than other high in-line pressure switches with 100micron filtration

Specifications

Series: P8 High Pressure Brass Flow Switch
Category/Type: Flow
Type: Flow Switches
Series: P8 High Pressure Brass Flow Switch
Service: Compatible liquids.
Wetted Materials: Housing: Brass; Piston: PPS composite; epoxy; Spring: 316 SS; O-ring: Flourocarbon.
Temperature Limits: -20 to 275°F (-28 to 135°C).
Pressure Limits: 1500 psi (103.4 bar).
Accuracy: ±20% of set point.
Switch Type: SPST; NO.
Electrical Rating: .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
Electrical Connection: No. 22 AWG; 24" (61 cm) polymeric leads.
Process Connections: 3/8" male NPT.
Mounting Orientation: Any position. Set points shown are based on vertical; inlet down position.
Required Filtration: 100 microns or better.
Weight: 6 oz (.17 kg).
Agency Approval: CE.
