P3-45 | Polypropylene flow switch | actuation set point 2.0 GPM (7.57 LPM) | Q disconnect. | Dwyer
Polypropylene flow switch, actuation set point 2.0 GPM (7.57 LPM), Q disconnect.

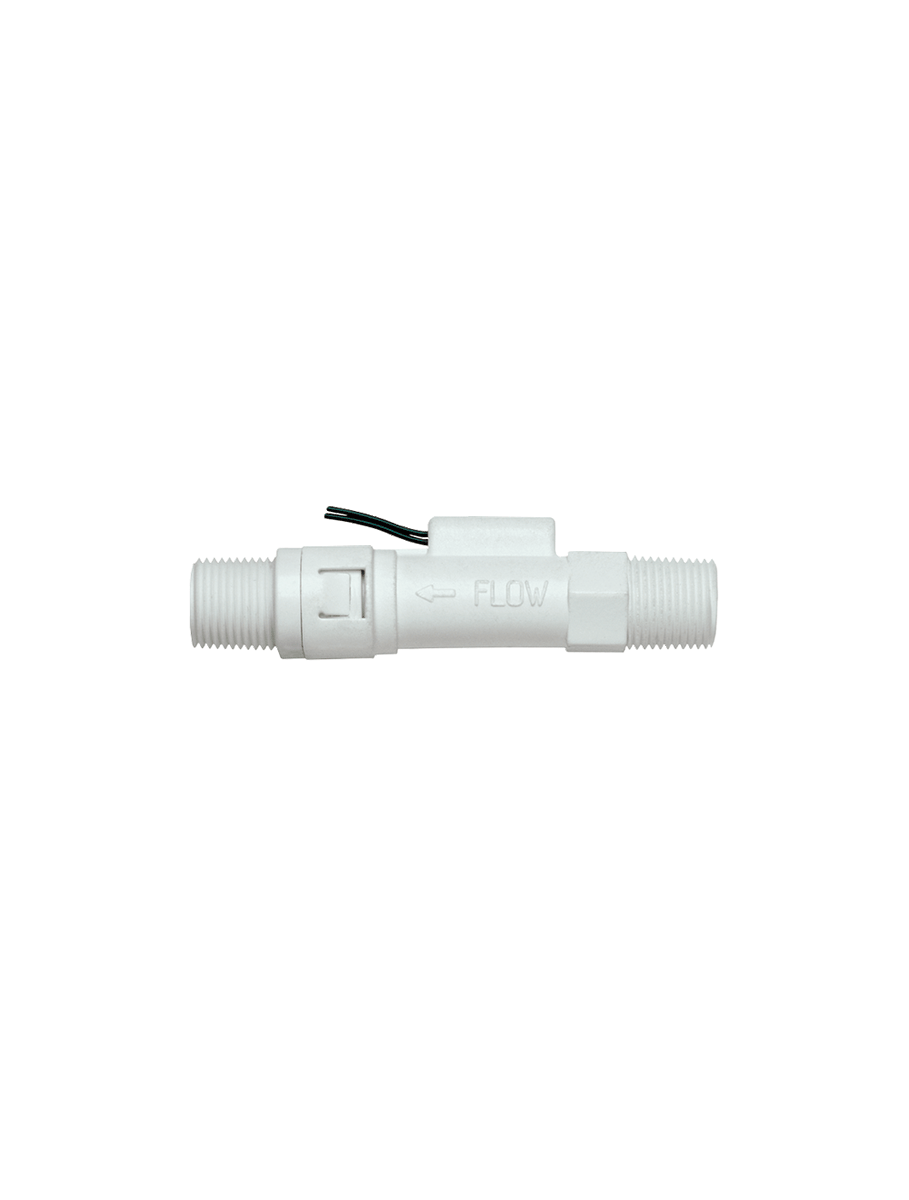

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P3-45
Documents and manuals
Dwyer P3-45 Documents
Overview
Details for P3-45
See catalog product page for full listing
Polypropylene flow switch | actuation set point 2.0 GPM (7.57 LPM) | Q disconnect.
Series P3 Polypropylene Flow Switch
Fixed Set Points from 0.25 to 2.0 GPM, 3/8" NPT or "Quick Disconnect" Adapters
The Series P3 Polypropylene Flow Switches fit almost any piping requirements withcompatible liquids. Choose the inlet and outlet port to be 3/8" male NPT or 1/4" male“Quick Disconnect° then select a quick disconnect acetal adapter for straight throughflow or with a shut off valve.
Product Applications
- Pure water equipment
- Filter life monitoring
- Heat exchangers
- Cooling applications
- Piston design incorporates a hermetically sealed SPST magnetic reed switch
- Easy integration to existing piping with a variety of fitting options
- Selectable shut off valve will stop line flow when the adapter is removed from theswitch
- Economical design
Specifications
- Series
- P3 Polypropylene Flow Switch
- Category/Type
- Flow
- Type
- Flow Switches
- Series
- P3 Polypropylene Flow Switch
- Service
- Compatible liquids.
- Wetted Materials
- Housing: Polypropylene; Piston: PPS composite; Spring: 316SS; O-ring: Fluorocarbon.
- Temperature Limits
- 0 to 212°F (-18 to 100°C).
- Pressure Limits
- 125 psig (8.6 bar) @ 70°F (21°C); 50 psig (3.4 bar) @ 212°F (100°C).
- Accuracy
- 20% of set point.
- Switch Type
- SPST; N.O.
- Electrical Rating
- .08 A @ 120 VAC.
- Electrical Connection
- 24" (60.96 cm) polymeric wire leads; 22 AWG.
- Process Connection
- 3/8" male NPT or 1/4" quick disconnect.
- Mounting Orientation
- Any position. Set points shown are based on vertical; inlet down position.
- Required Filtration
- 100 microns or better.
- Weight
- 5 oz (0.14 kg).
- Agency Approval
- CE.
