P1-013 | Brass flow switch | actuation set point 0.50 GPM (1.89 LPM) | calibrated for water @ standard conditions. | Dwyer
Brass flow switch, actuation set point 0.50 GPM (1.89 LPM), calibrated for water @ standard conditions.

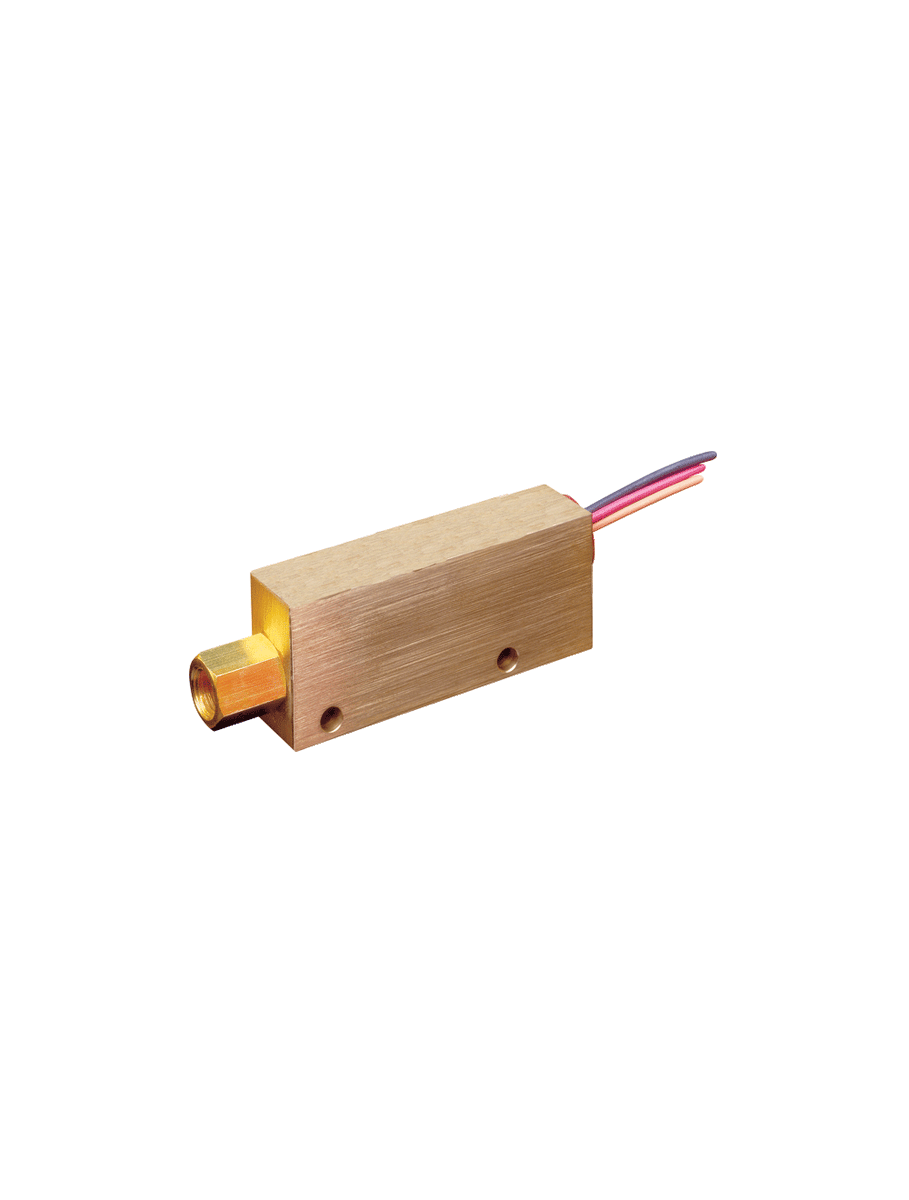

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P1-013
Documents and manuals
Dwyer P1-013 Documents
Overview
Details for P1-013
See catalog product page for full listing
Brass flow switch | actuation set point 0.50 GPM (1.89 LPM) | calibrated for water @ standard conditions.
Series P1 Brass Flow Switch
Fixed Setpoints, Flow Rates from 0.10 to 1.5 GPM
The Series P1 Brass Flow Switches utilizes a piston-type design for accurate detection of excessive or insufficient flow rates. The switches have preset actuation points from 0.10 to 1.5 GPM for liquid flow.
Product Applications
- Industrial cleaning equipment
- Detecting loss of fluid in hydraulic systems
- Assuring proper coolant flow in semiconductor processing
- Piston-type operation yields accurate detection of low flow rates
- The piston magnetically actuates a hermetically sealed SPST reed switch
Specifications
- Series
- P1 Brass Flow Switch
- Category/Type
- Flow
- Type
- Flow Switches
- Series
- P1 Brass Flow Switch
- Service
- Compatible liquids.
- Wetted Materials
- Housing: brass; Piston: polysulfone; Spring: 316SS; O-Ring: Fluoroelastomer; Other: Epoxy.
- Temperature Limits
- -20 to 225°F (-29 to 107°C).
- Pressure Limits
- 1000 psig (68.9 bar).
- Accuracy
- ±10% of set point.
- Repeatability
- ±1%.
- Switch Type
- SPDT.
- Electrical Rating
- .17 A @ 120 VAC; .08 A @ 240 VAC; .13 A @ 120 VDC; .06 A @ 240 VDC.
- Electrical Connection
- 18 AWG; 24" (60.96 cm); Polymeric lead wires.
- Process Connection
- 1/4" female NPT.
- Mounting Orientation
- Any position. Set points shown are based on vertical; inlet down position.
- Required Filtration
- 50 microns or better.
- Weight
- 0.66 lb (301 g).
- Agency Approval
- CE.
